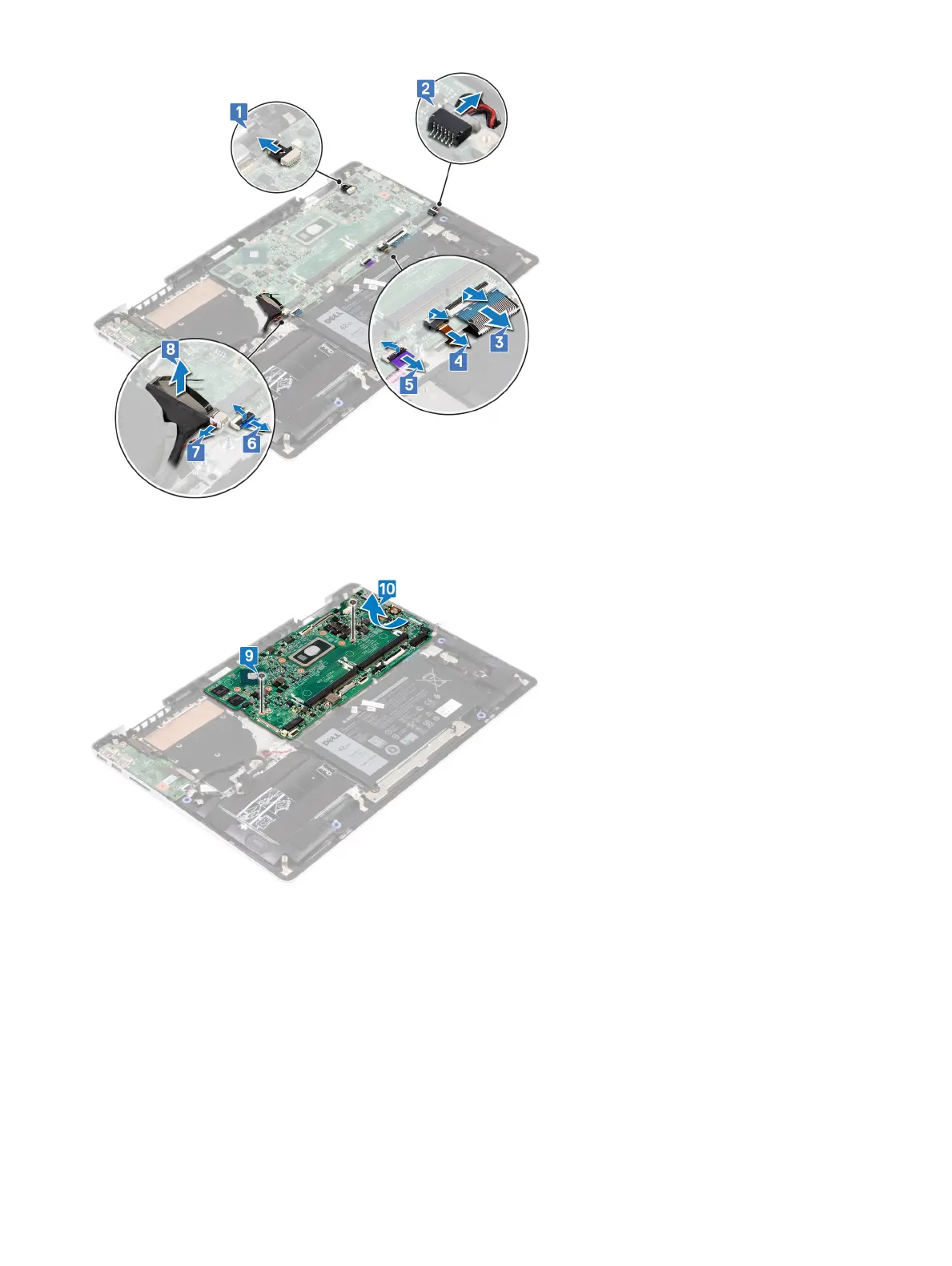

9 Remove the two screws (M2x2) that secure the system board to the palm-rest assembly.

10 Slide and lift the system board o the palm-rest assembly.

Removing the system board
