Replacing the display cable
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

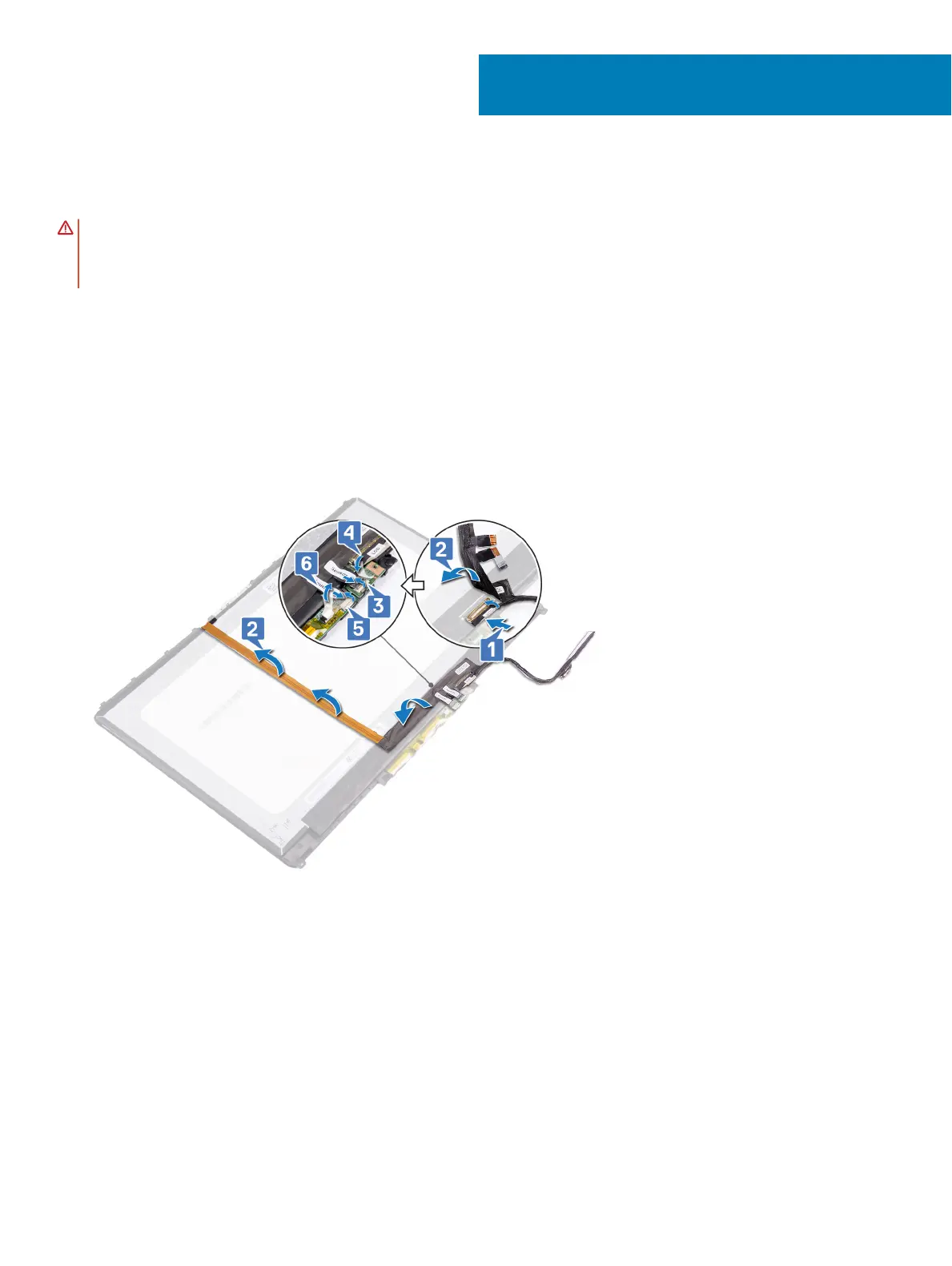

1 Connect the display cable and close the latch to secure the cable.
2 Adhere the camera cable and touchscreen-board cable to the display panel.
3 Connect the touchscreen-board cable and close the latch to secure the cable.
4 Adhere the tape that secures the touchscreen-board cable to the display panel.
5 Connect the camera cable and close the latch to secure the cable.
6 Adhere the tape that secures the camera cable to the display panel.
Post-requisites
1 Replace the camera.
2 Follow the procedure from step 4 to step 9 in "Replacing the display panel".
3 Replace the display assembly.
4 Replace the heat sink.
5 Replace the fan.
6 Replace the wireless card.
7 Replace the base cover.
