Replacing the display hinges
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

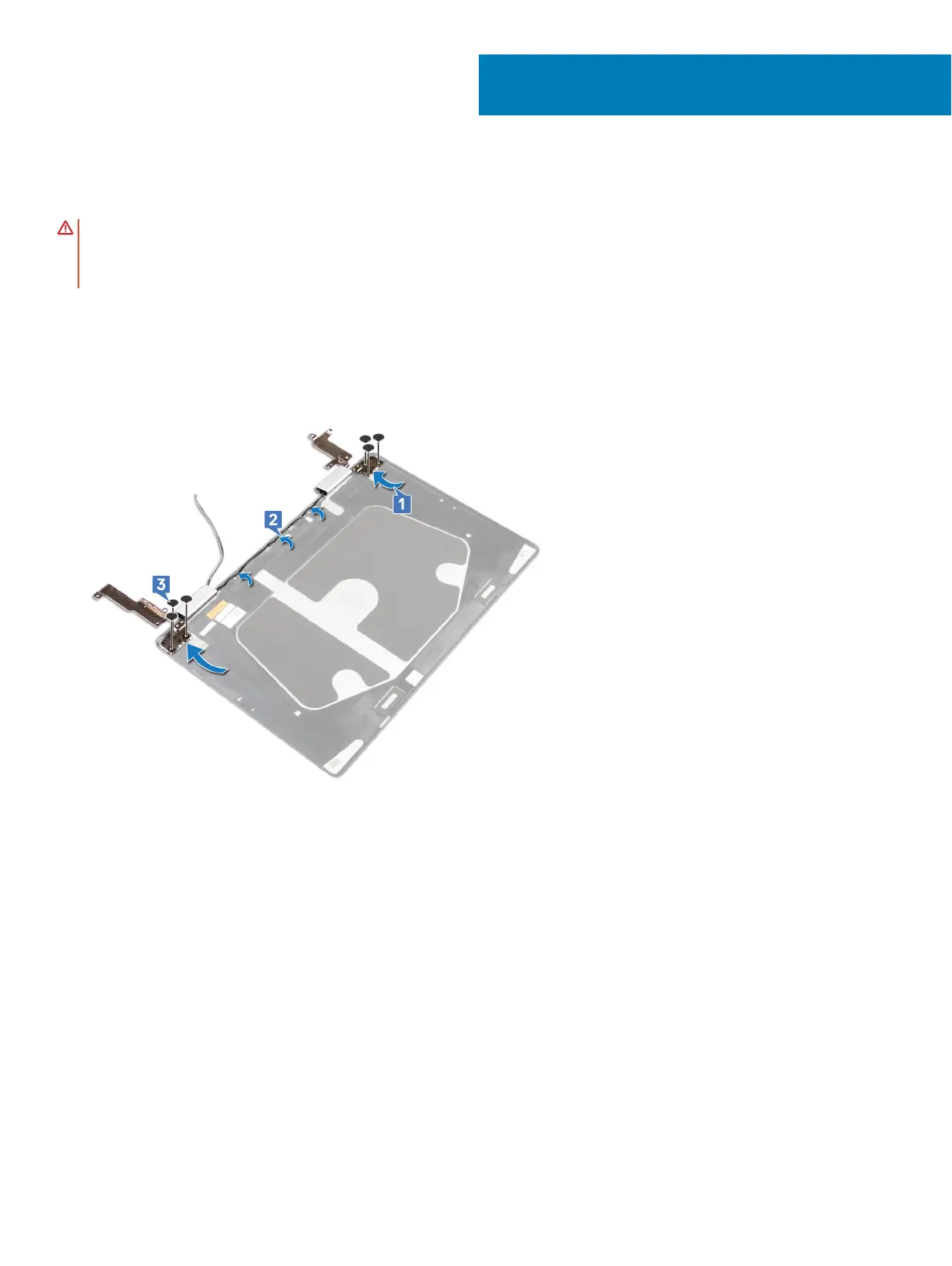

1 Align the screw holes on the hinges and brackets with the screw holes on the display back cover.
2 Route the antenna cables through the routing guides on the display back cover.
3 Replace the six screws (M2.5x2.5) that secure the hinges to the display back cover.
Post-requisites
1 Replace the display panel.
2 Replace the display assembly.
3 Replace the heat sink.
4 Replace the fan.
5 Replace the wireless card.
6 Replace the base cover.
