Removing the display hinges
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the wireless card.
3 Remove the fan.
4 Remove the heat sink.
5 Remove the display assembly.
6 Remove the display panel.
Procedure

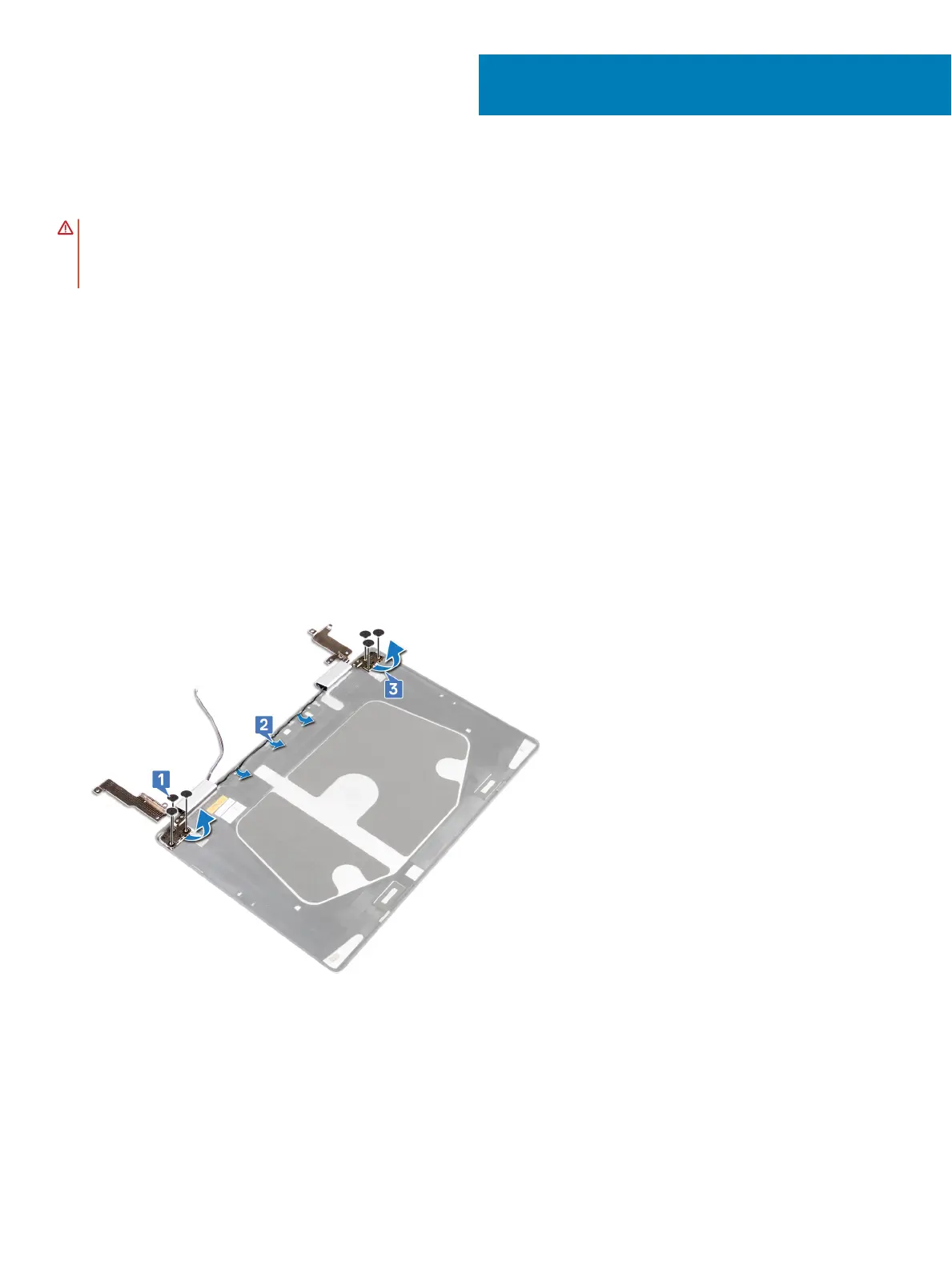

1 Remove the six screws (M2.5x2.5) that secure the hinges to the display back cover.
2 Remove the antenna cables from the routing guides on the display back cover.
3 Lift the hinges and brackets oî the display back cover.
