Dell PowerConnect 28xx Systems User Guide 109

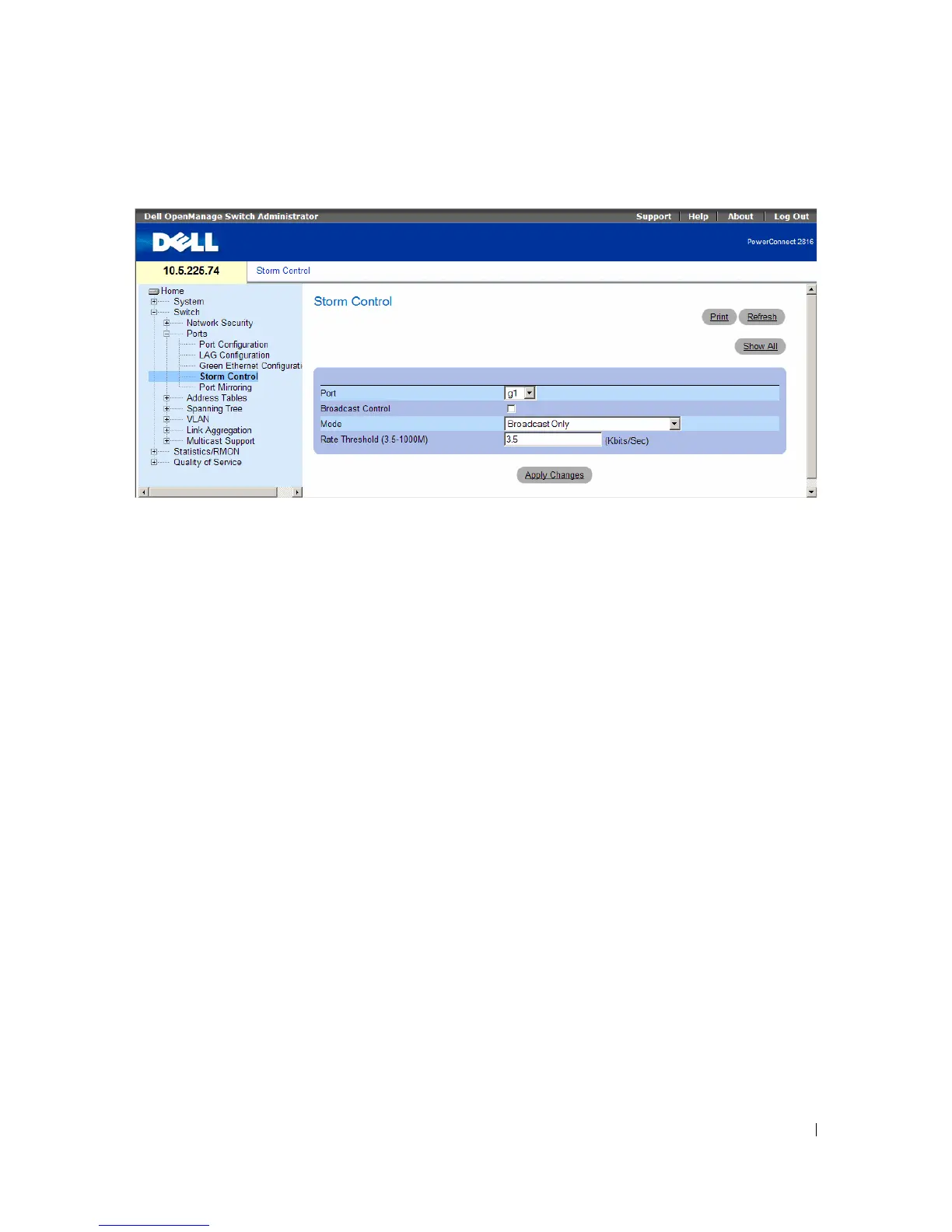

Figure 7-12. Storm Control
• Port — The port from which storm control is enabled.
•
Broadcast Control — Enables or disables forwarding broadcast packet types on the device.
•
Mode — Specifies the Broadcast mode currently enabled on the device. The possible field value are:
–
Unknown Unicast, Multicast & Broadcast — Counts unknown Unicast, Multicast, and Broadcast
traffic.
–
Multicast & Broadcast — Counts Broadcast and Multicast traffic together.
–
Broadcast Only — Counts only Broadcast traffic.
•
Rate Threshold (3.5-1000M) — The maximum rate (/Sec) at which packets are forwarded. The range
is 3.5-1000M.
Enabling Storm Control on the Device
1 Open the Storm Control page.
2 Select an interface on which to implement storm control.
3 Define the fields.
4 Click Apply Changes .
The Storm Control is enabled on the device.
Displaying the Storm Control Table
1 Open the Storm Control page.
2 Click Show All .
The
Storm Control Table opens:
