Dell PowerEdge R410 - Front Panel View and Features; Back Panel View and Features

PowerEdge R410 Technical Guidebook
8
Dell

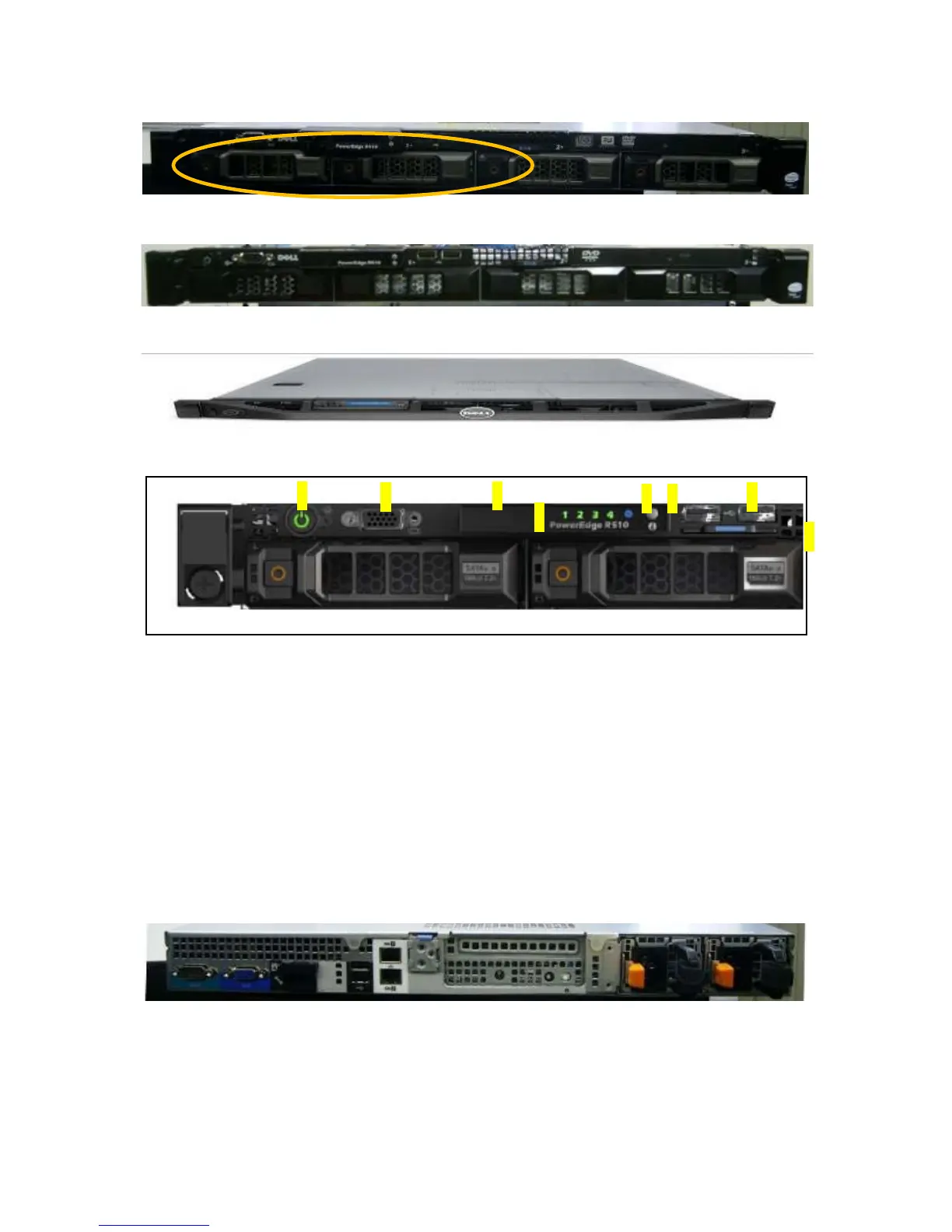

4.3 Front Panel View and Features
Figure 2. Hot-Swap HDD view
Figure 3. Cabled HDD View
Figure 4. With Bezel View
Figure 5. Front Panel Controller
• Front control panel: 11G control panel
o Front KVM (2x USB, 1x Video)
o Diagnostic indicator (quad-pack LED with cabled HDD configuration; 11G LCD with hot-
swap HDD configuration)
o System ID button
o Power button
o HDD activity LED
o NMI button
o Asset Tag
4.4 Back Panel View and Features
Figure 6. With Redundant Power Supply
HDD_0
HDD_1
○
4
○
1
○
1
○
2
○
3
○
5
○
6
○
7
HDD_0
HDD_1
HDD_2
HDD_3
ODD
