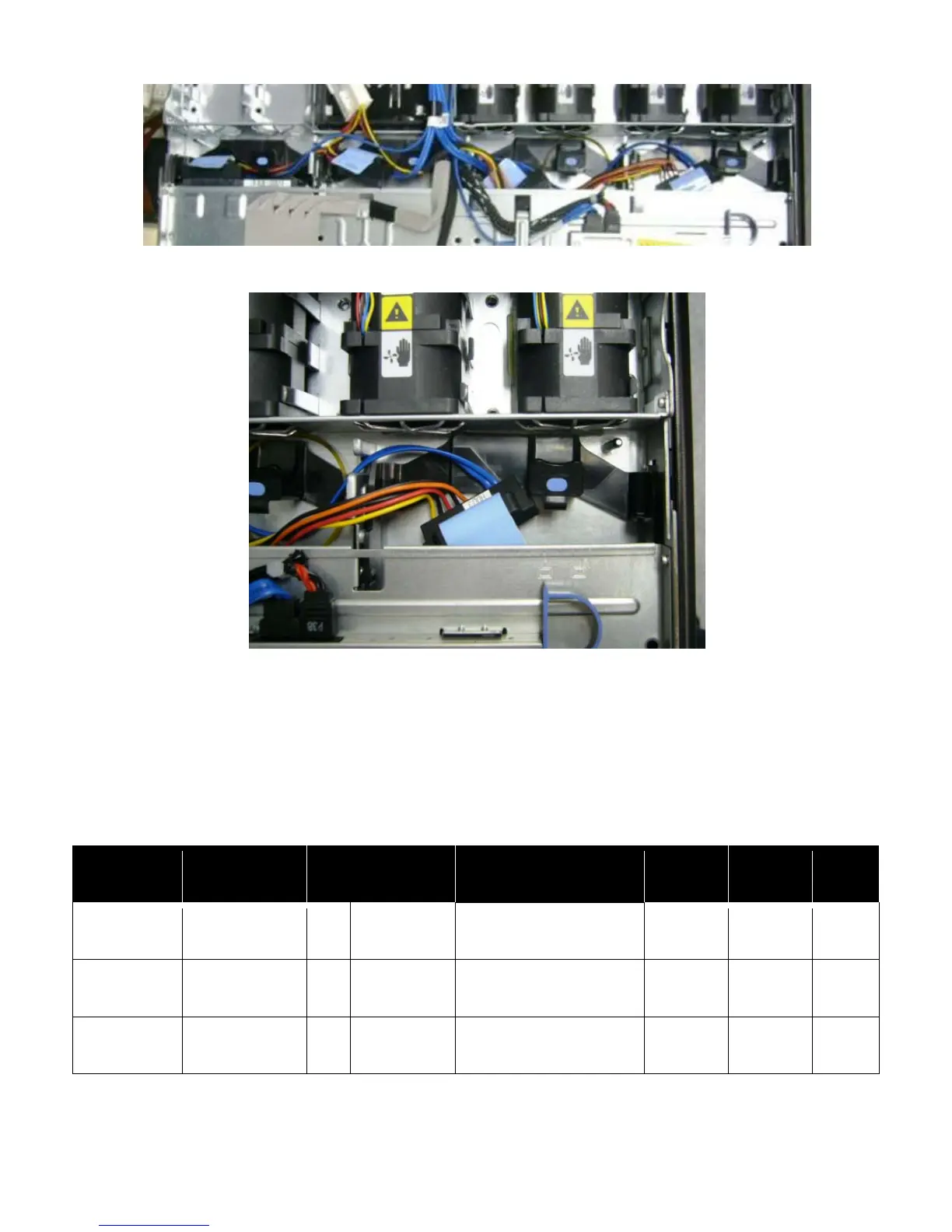

Figure 35. Top-View for Cabled HDD Connection
Figure 36. Cabled HDD Connectors
14.2 Drives
Refer to Section 3.2 “Product Features Summary” for supported type and capacities.
14.3 RAID Configurations
Table 18. RAID Configurations
Cabled/Hot
Swap
Configuration
Type
Configurations Description
Min
HDD
Max
HDD
MOD
Cabled NO HDD
C0
A
NCZCBL
No HDD, Cabled HDD
Chassis
0 0
Y331
M
Hot-Swap NO HDD
C0
B
NCZ
No HDD, Hot-Swap
HDD Chassis
0 0
C537
N
Cabled
Embedded
SATA
C1 MSTCBL
On-board SATA
Controller (ICH10R)
1 4
Y332
M
