PowerEdge R410 Technical Guidebook
22
Dell

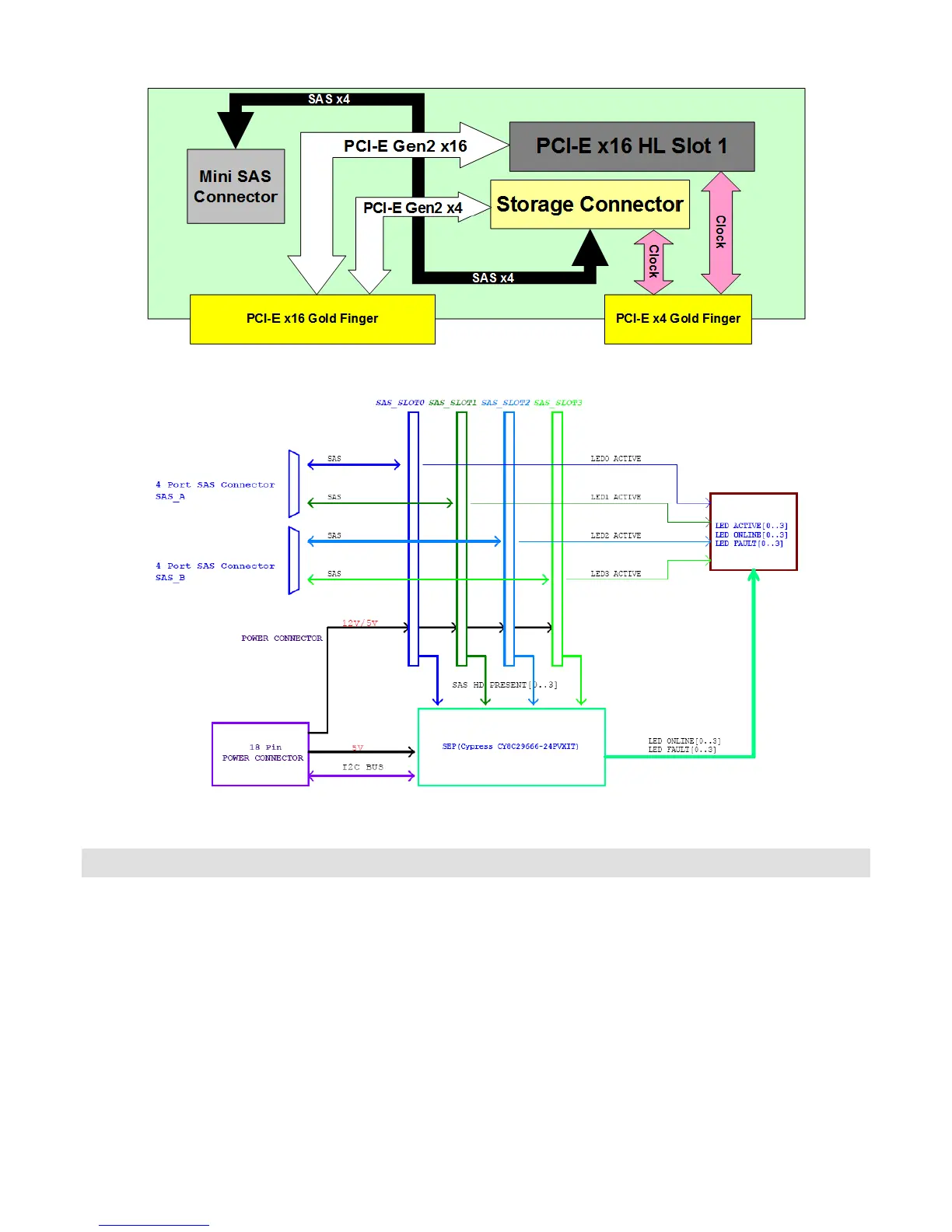

Figure 26. Riser Card Block Diagram
Figure 27. Hard Drive Backplane Board Block Diagram
8 Processors
8.1 Overview
The PowerEdge R410 supports the Intel Xeon 5500 series processors originally released to the
industry on March 30, 2009.
8.2 Supported Processors
Supported Intel Xeon 5500 series processors:
• X5570, 2.93G Hz/8M,4C 95W
• X5560, 2.80G Hz/8M,4C 95W
