Dell PowerEdge R650XS RD8NP User Manual

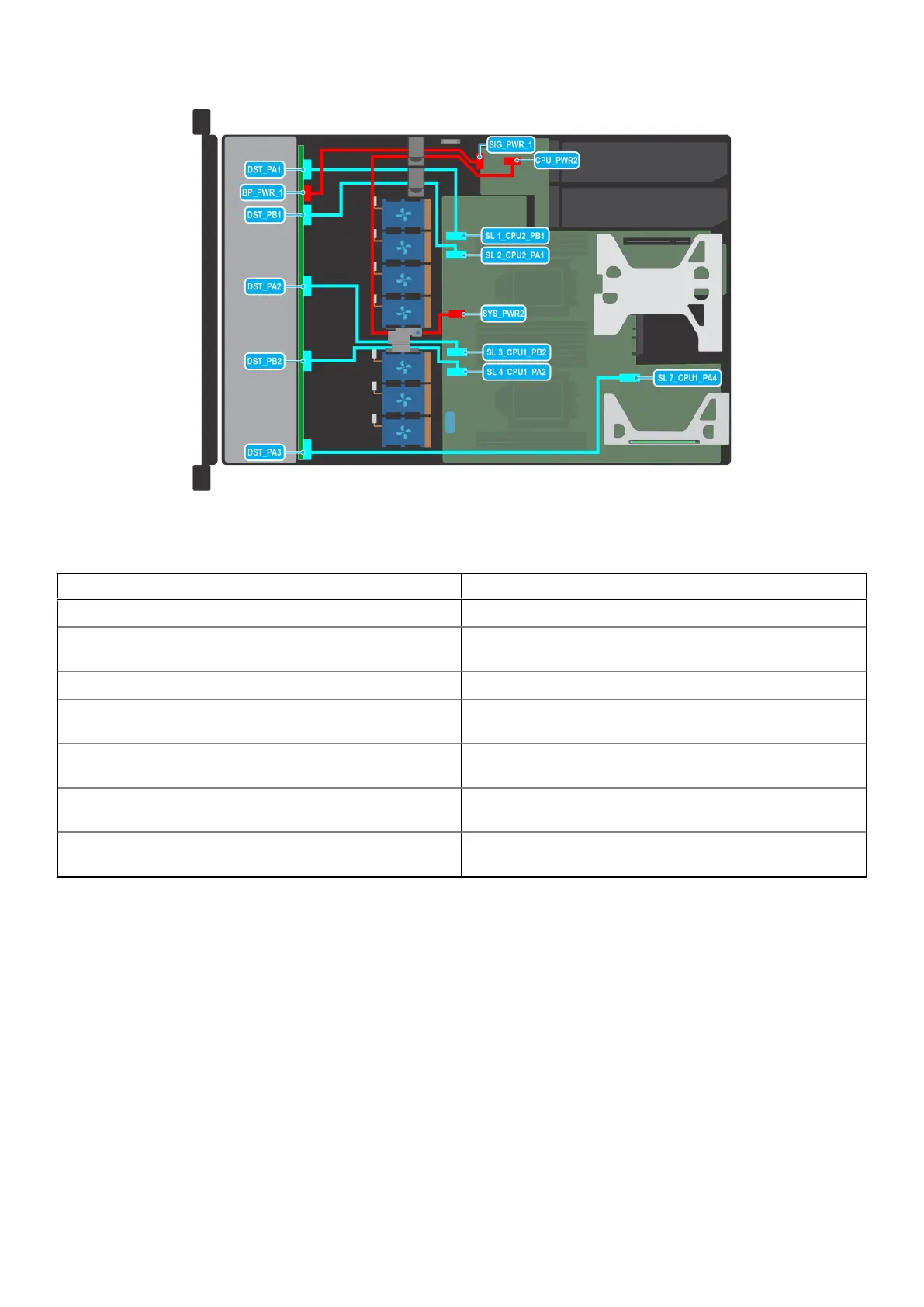

Figure 40. Cable routing - 10 x 2.5-inch drive backplane on the onboard controller (4:6 NVMe)
Table 18. Connector descriptions for 10 x 2.5-inch drive backplane to the onboard controller (6:4 NVMe)
From To
BP_PWR_1 (backplane power connector) SIG_PWR_1 (system board power connector)
DST_PA1 (backplane SATA connector, cable marking BP PA1) SL1_CPU22_PB1 (signal connector on the system board,
cable marking MB SL9)
SYS_PWR2 (system board power connector) CPU_PWR2 (PSU power connector)
DST_PB1 (backplane SATA connector, cable marking BP PB1) SL2_CPU2_PA1 (signal connector on the system board, cable
marking MB SL2)
DST_PA2 (backplane SATA connector, cable marking BP PA2) SL3_CPU1_PB2 (signal connector on the system board, cable
marking MB SL3)
DST_PB2 (backplane SATA connector, cable marking BP
PB2)
SL4_CPU2_PA2 (signal connector on the system board, cable
marking MB SL4)
DST_PA3 (backplane SATA connector, cable marking BP PA3) SL7_CPU1_PA4 (signal connector on the system board, cable
marking MB SL7)
52 Installing and removing system components

Dell PowerEdge R650XS RD8NP Specifications

General

Memory Slots	16 DIMM slots
Form Factor	1U rack server
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4, 3200 MT/s
Storage	Up to 8 x 2.5" or 3.5" drives (SAS/SATA/NVMe)
RAID Support	PERC H755
Power Supply	800W
Network	1 x 1GbE OCP 3.0 card (optional)
PCIe Slots	Up to 3 PCIe Gen4 slots
