Front Bezel (Optional)
A lock on the bezel restricts access to the power button, optical drive, and
hard drive(s). The LCD panel and navigation buttons are accessible through
the front bezel. See Figure 3-2.
Removing the Front Bezel
1 Using the system key, unlock the bezel.
2 Pull up on the release latch next to the key lock.
3 Rotate the left end of the bezel away from the system to release the right
end of the bezel.
4 Pull the bezel away from the system. See Figure 3-2.

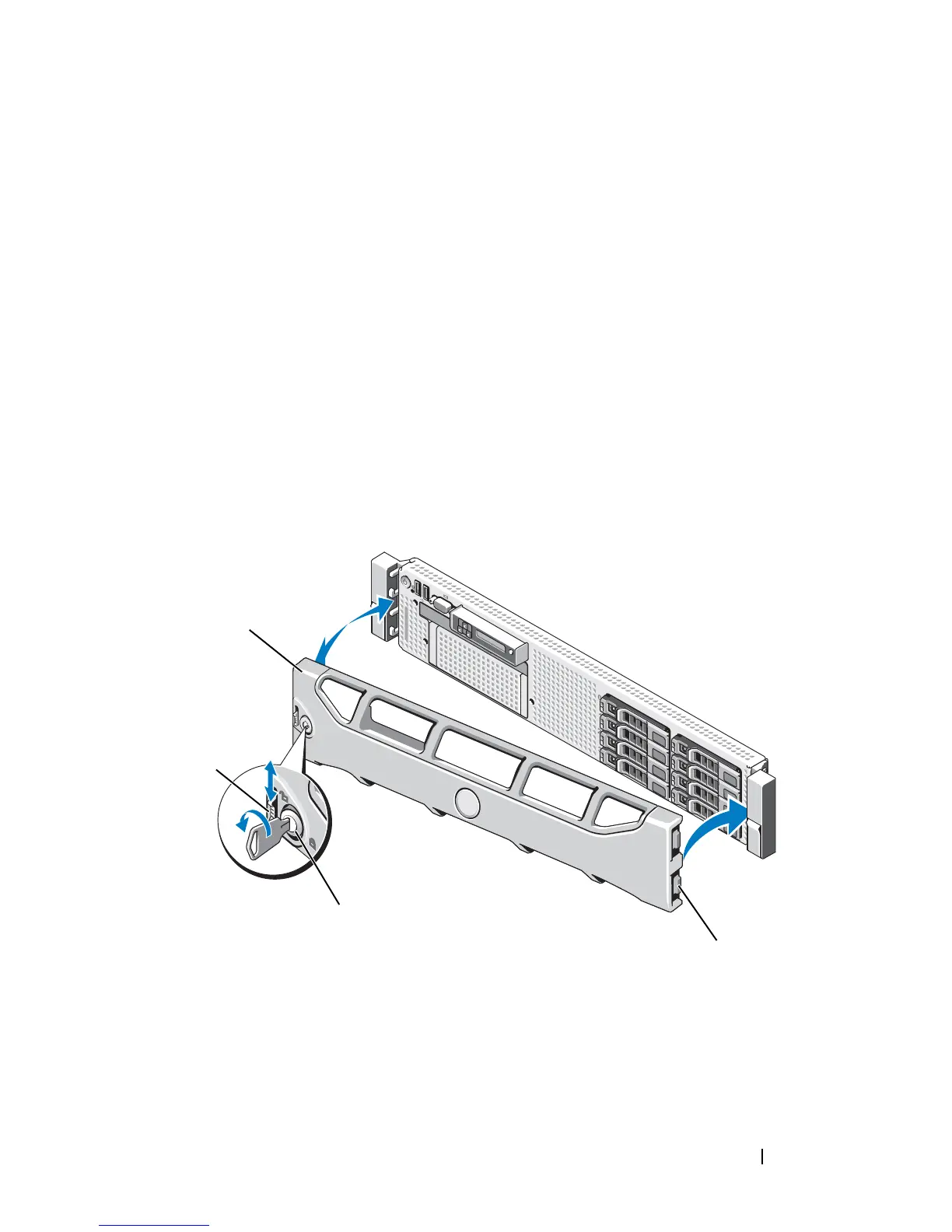

Figure 3-2. Removing the Front Bezel
1 release latch 2 bezel
3 hinge tabs 4 key lock
