Installing a Power Supply/Cooling Fan Module
1
Slide the power supply/cooling fan module into the chassis until it is fully
seated and the release tab clicks into place. See Figure 3-9.
2
Connect the power cable to the power supply/cooling fan module and plug
the cable into a power outlet.
3
Secure the power cable using the Velcro strap. See Figure 3-10.

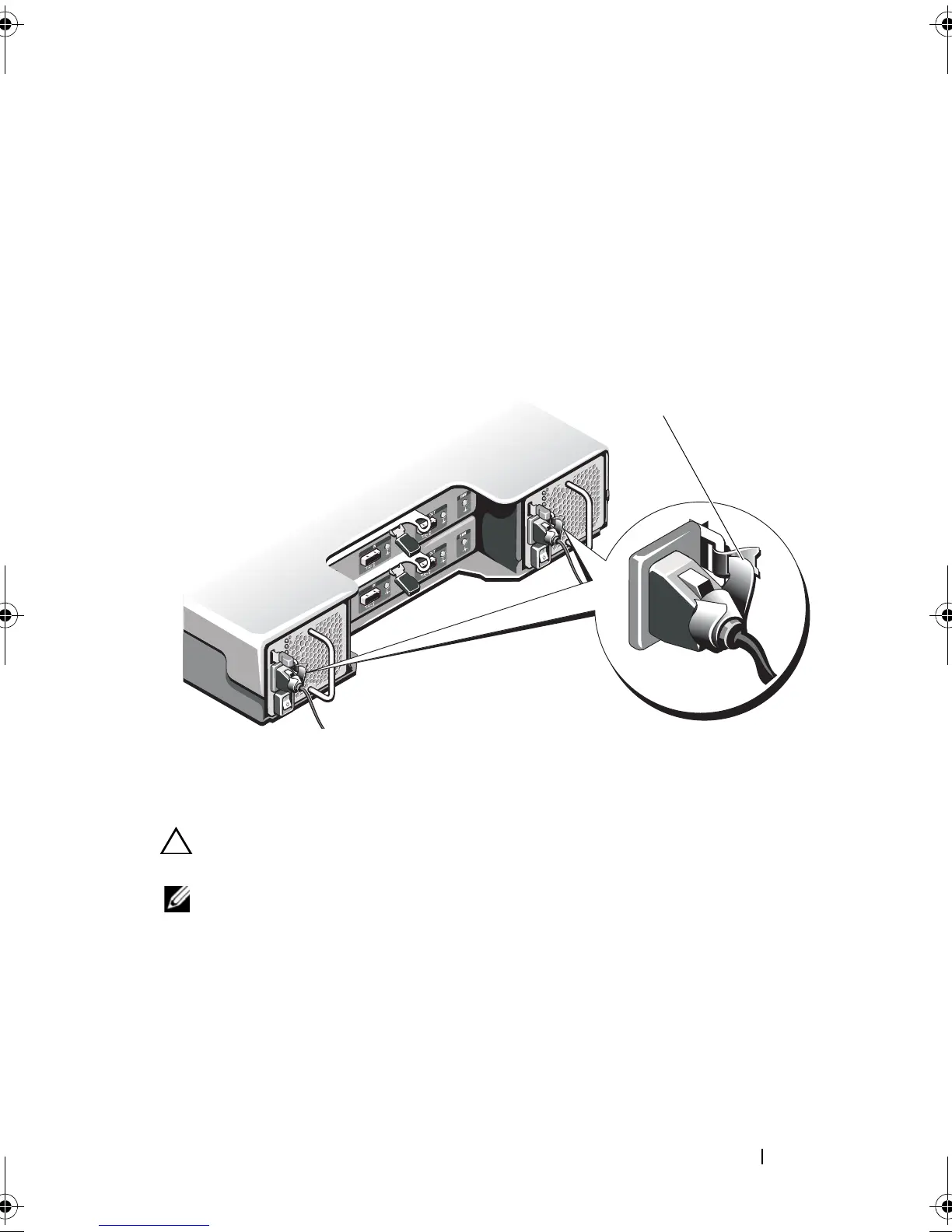

Figure 3-10. Securing the Power Cable
CAUTION: When connecting the power cable, secure the cable with the Velcro
strap.
NOTE: If the enclosure is powered on, all the power supply LEDs remain off until
the AC power cable is connected to the power supply/cooling fan module and the
power switch is turned on.
4
Turn on the power supply/cooling fan module.
1 Velcro strap
