Removing a Hard Drive From a Hard-Drive Carrier
Remove the screws from the slide rails on the hard-drive carrier and separate
the hard drive from the carrier. See
Figure 16-5 for PowerVault MD3600f and
Figure 16-6 for PowerVault MD3620f.

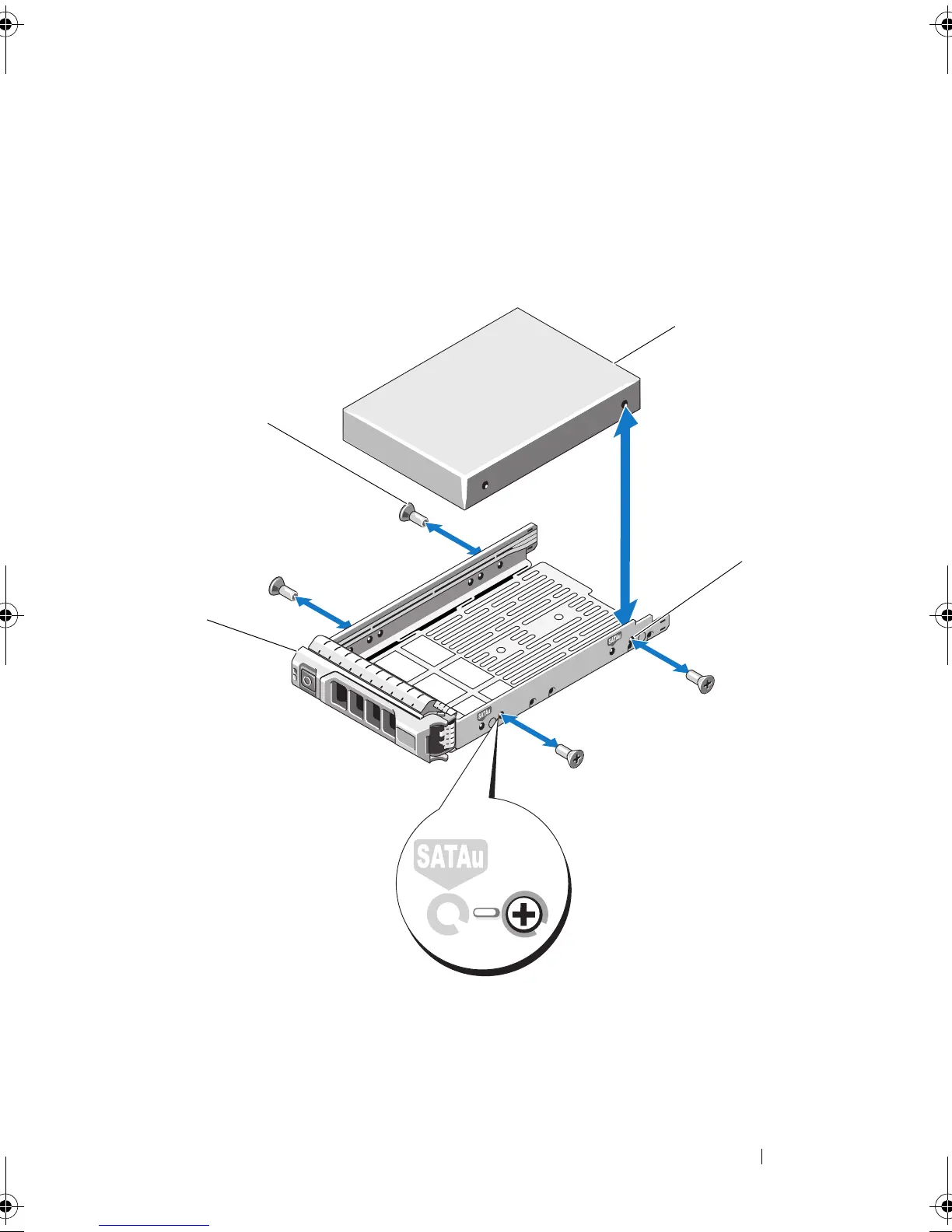

Figure 16-5. Removing and Installing a Hard Drive Into a 3.5" Hard-Drive Carrier
1 screws (4) 2 hard drive
3 SAS screw hole 4 hard-drive carrier
