Dell Precision 3431 Small Form Factor User Manual

NOTE: The tab may indicate 5.25 inch because you can also install a 5.25 inch hard drive in same drive bay.

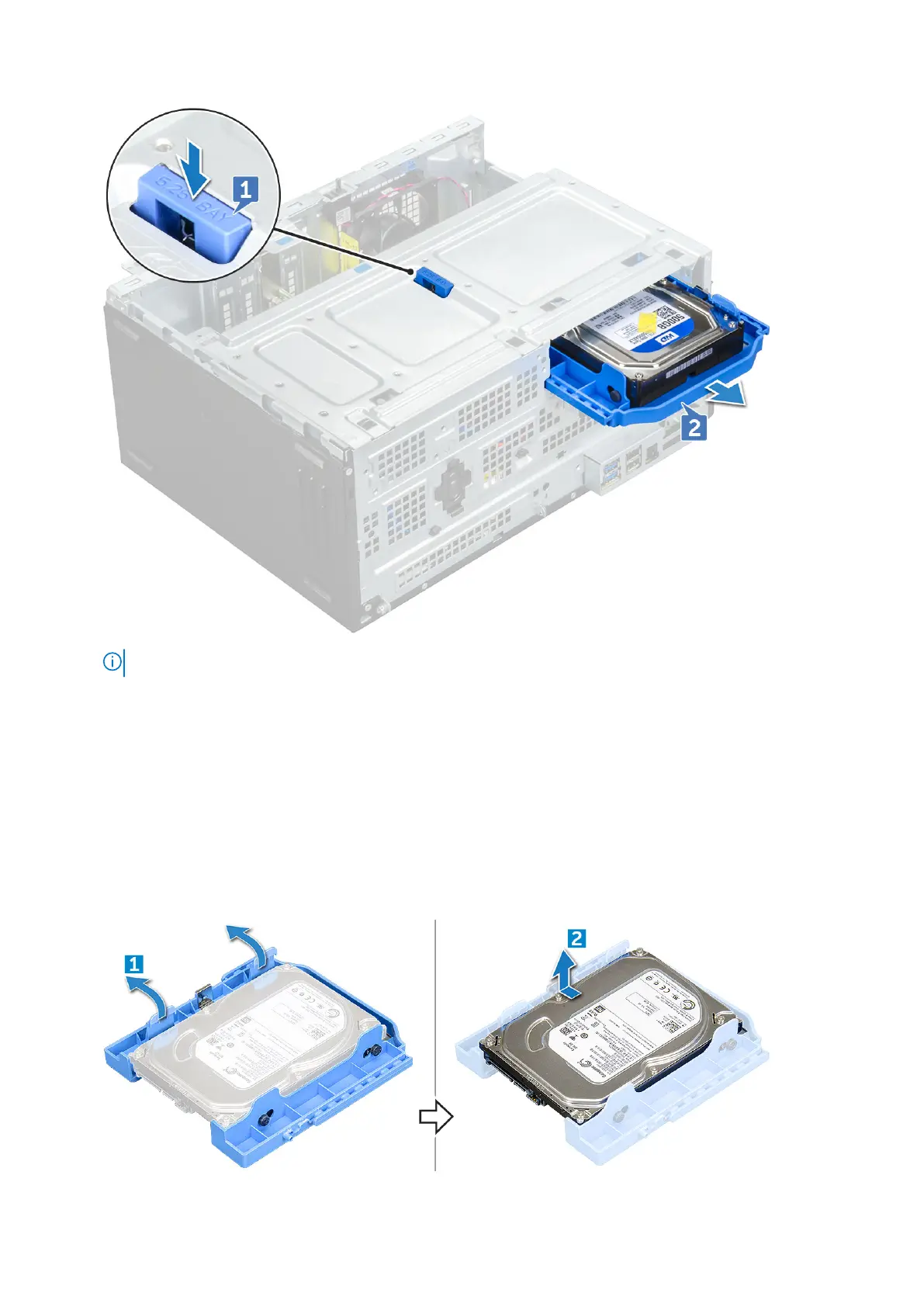

Removing 3.5–inch hard drive from the hard drive bracket
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Side Cover
b. Front bezel
c. Hard drive assembly
3. To remove hard drive bracket:
a. Pull one side of the hard drive bracket to disengage the pins on the bracket from the slots on the hard drive [1].
b. Lift the hard drive out of the hard drive bracket [2].
Field service information
25

Dell Precision 3431 Small Form Factor Specifications

General

Brand	Dell
Model	Precision 3431 Small Form Factor
Category	Desktop
Language	English
