Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

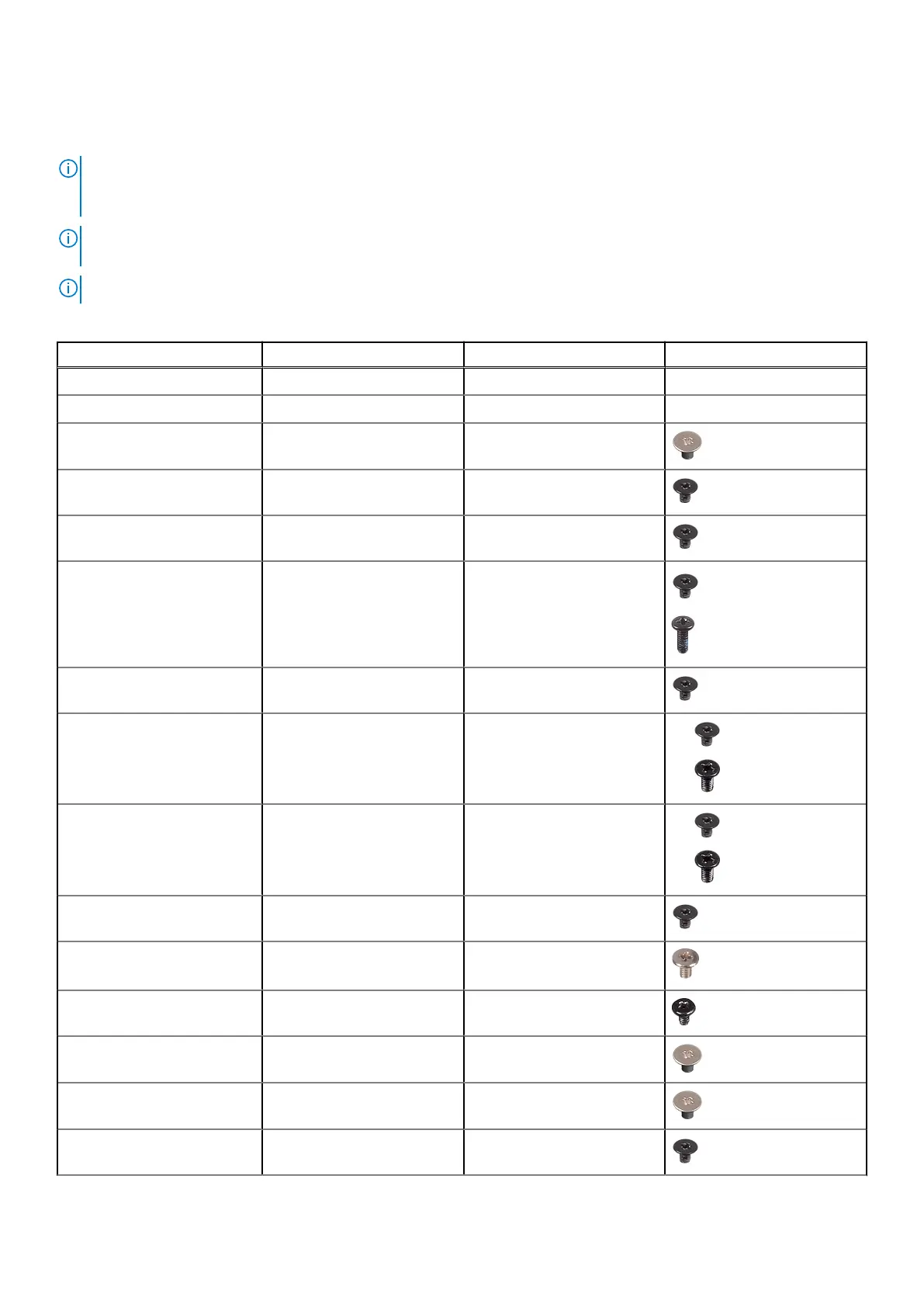

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover Captive screws 8 N/A
Wireless card Captive screws 1 N/A
Wireless Wide Area Network
(WWAN) Card
M2x3 1
M.2 2230 solid-state drive M2x3 4
M.2 2280 solid-state drive M2x3 2
Assembly inner frame M2x3
M2x5
7
2
4-cell battery M2x3 2
Heat sink with fan assembly -
UMA
● M2x3
● M2x5 (for fan)
● 4
● 2
●
●
Heat sink with fan assembly -
Discrete
● M2x3
● M2x5 (for fan)
● 6
● 2
●
●
eDP cable/bracket M2x3 2
USB Type-C support bracket M2x5 3
System board M2x3 4
Power button M2x2.5 2
Smart card reader M2x2.5 3
LED board M2x3 1
12 Removing and installing components
