Sensor board
Removing the sensor board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the WLAN card.
6. Remove the WWAN card.
7. Remove the display assembly.
8. Remove the display bezel.
9. Remove the display panel.
About this task
NOTE: This procedure applies only to computers shipped with a sensor board.

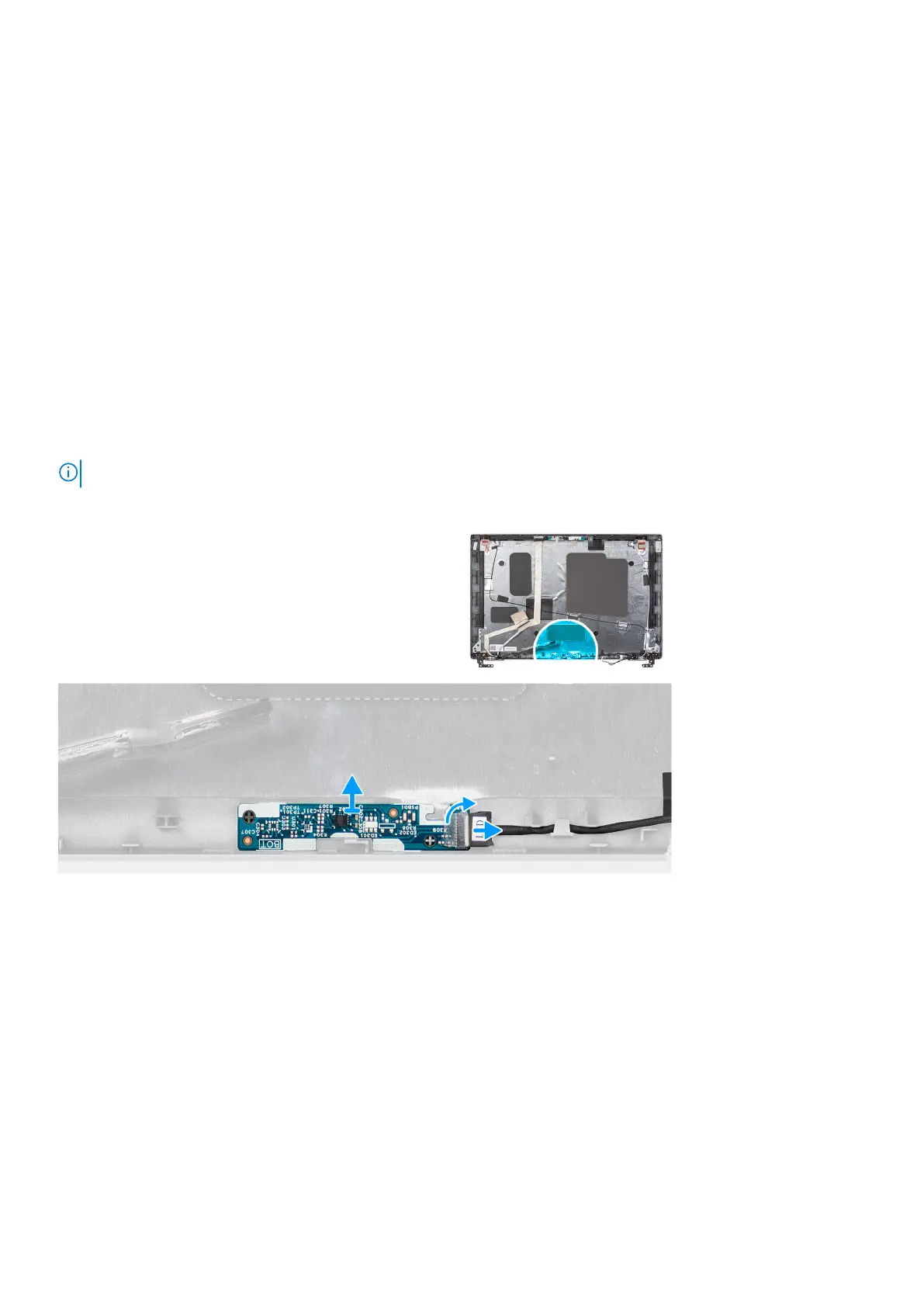

The following images indicate the location of the sensor board and provide a visual representation of the removal procedure.
Steps
1. Open the latch and disconnect the LED cable from connector on the sensor board.
2. Gently lift the sensor board away from the display back cover.
Installing the sensor board
About this task
The following images indicate the location of the sensor board and provide a visual representation of the removal procedure.
Removing and installing components
87
