Steps

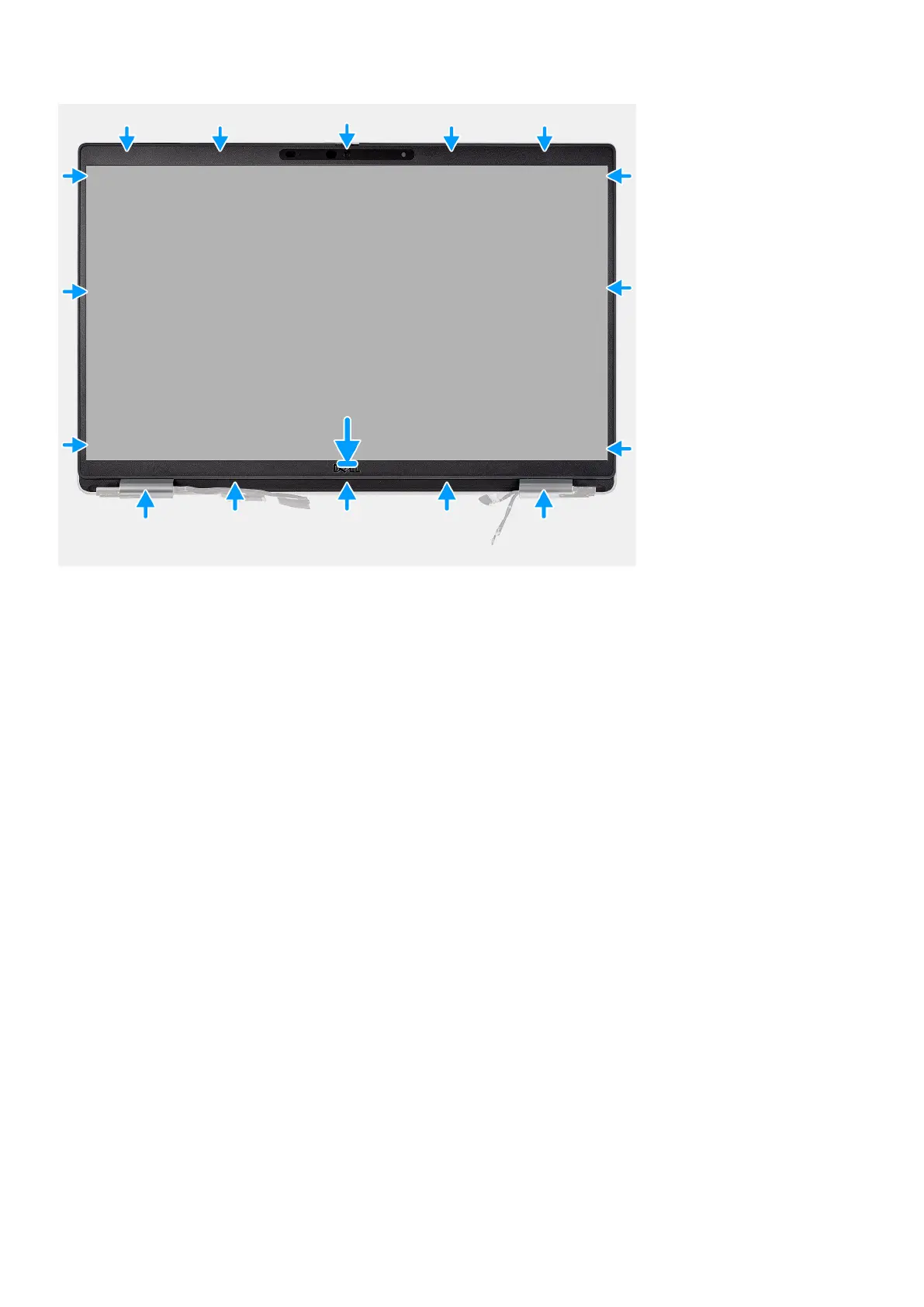

1. Align and place the display bezel on the display assembly.
2. Gently snap the display bezel into place.
Next steps
1. Install the display assembly.
2. Install the WWAN card.
3. Install the WLAN card.
4. Install the base cover.
5. Install the microSD card.
6. Install the SIM card.
7. Follow the procedure in After working inside your computer.
Display panel
Removing the display panel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the WLAN card.
6. Remove the WWAN card.
7. Remove the display assembly.
8. Remove the display bezel.
Removing and installing components
77
