Steps

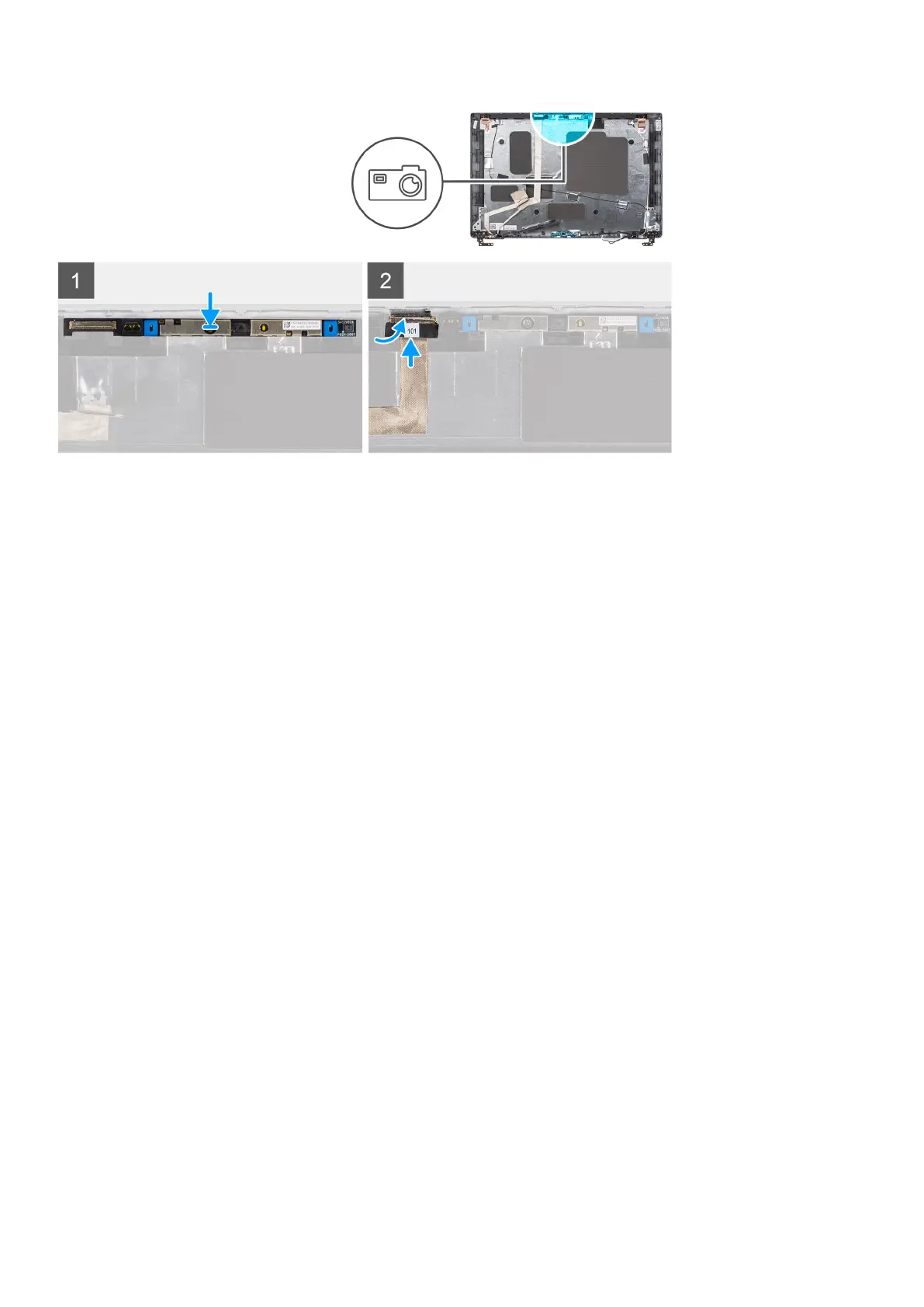

1. Align and place the camera module into the slot on the display back cover.
2. Connect the camera cable to the connector on the camera module.
3. Adhere the tape to secure the camera cable in place.
Next steps
1. Install the display hinge.
2. Install the display panel.
3. Install the display bezel.
4. Install the display assembly.
5. Install the base cover.
6. Install the microSD card.
7. Install the SIM card.
8. Follow the procedure in After working inside your computer.
eDP/display cable
Removing the eDP cable
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the WLAN card.
6. Remove the WWAN card.
7. Remove the display assembly.
8. Remove the display bezel.
9. Remove the display panel.
About this task
The following images indicate the location of the eDP cable and provide a visual representation of the removal procedure.
