Steps
1. Locate the system board slot on your computer.

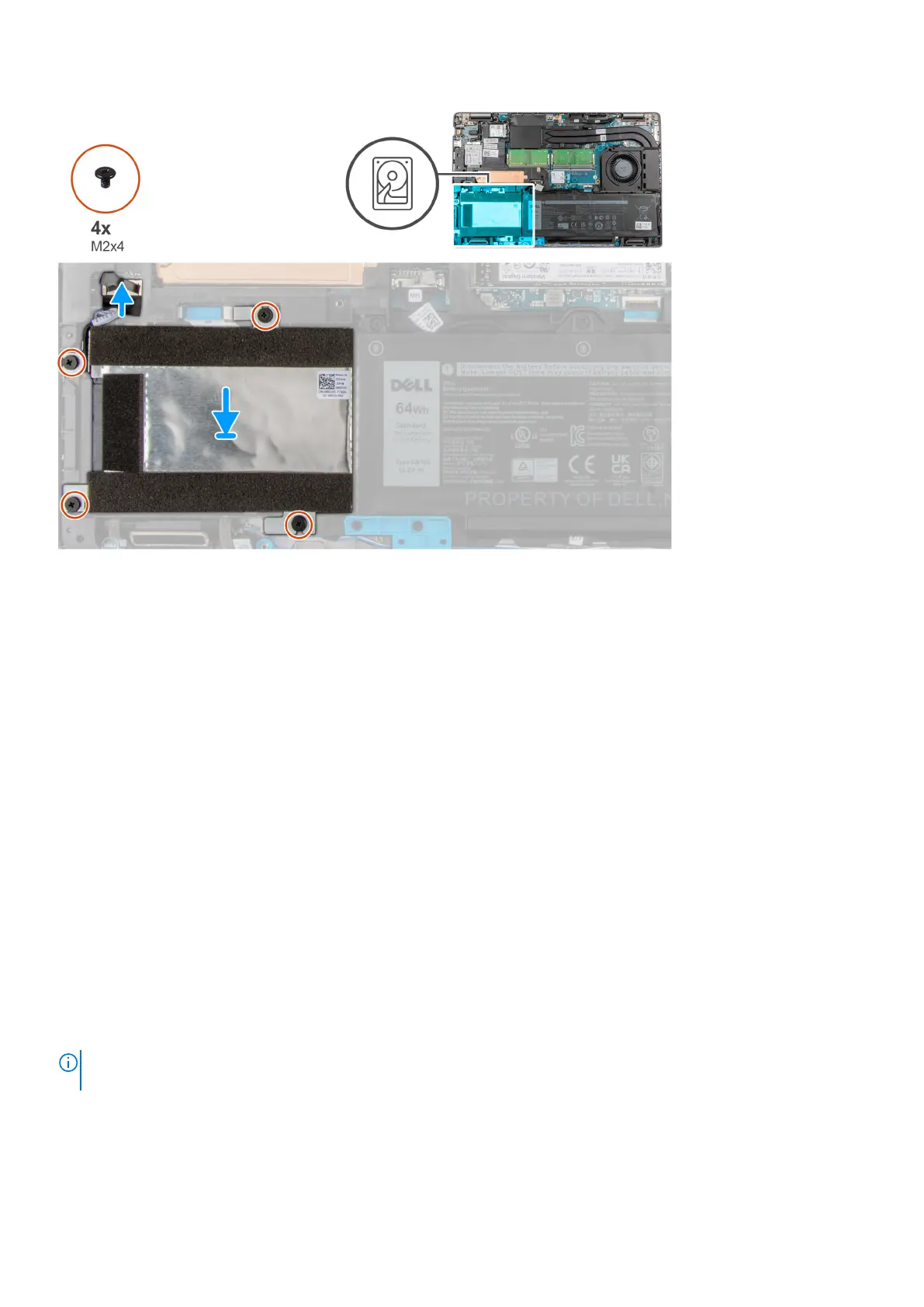

2. Align and install the HDD into the computer
3. Replace the four (M2x4) screws that secure the HDD to the computer.
4. Connect the HDD cable on to the connector on the system board.
Next steps
1. Install the base cover.
2. Install the microSD card.
3. Install the SIM card.
4. Follow the procedure in After working inside your computer.
Battery cable
Removing the battery cable
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
NOTE:
If battery is disconnected from system board for service, then there is a delay during system boot as the system
undergoes RTC battery reset.
About this task
The following images indicate the location of the battery cable and provide a visual representation of the removal procedure.
Removing and installing components
37
