Dell Precision 3561 - Installing the Power-Button Board

10. Remove the system board.
About this task

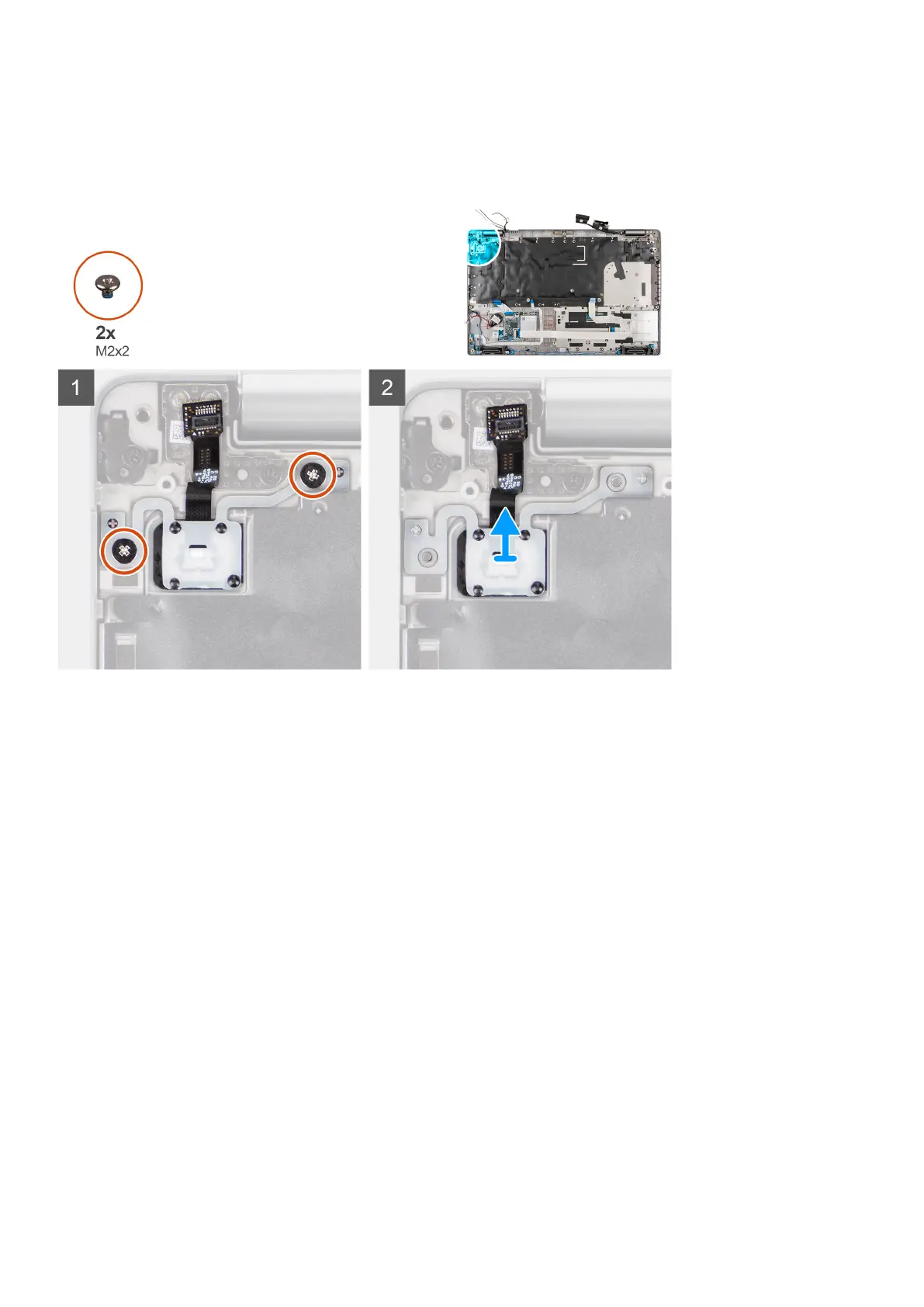

The following images indicate the location of the power-button board and provide a visual representation of the removal
procedure.
Steps
1. Remove the two screws (M2x2) that secure the power-button board to the palm-rest assembly.
2. Lift the power-button board off the palm-rest assembly.
Installing the power-button board
About this task
The following images indicate the location of the power-button board and provide a visual representation of the installation
procedure.
60
Removing and installing components
