10. Install the microSD card.
11. Install the SIM card.
12. Follow the procedure in After working inside your computer.
Keyboard bracket
Removing the keyboard bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the memory module.
6. Remove the 2280 solid-state drive or 2230 solid-state drive.
7. Remove the WLAN card.
8. Remove the WWAN card.
9. Remove the battery.
10. Remove the heat sink - UMA or discrete based on the system configuration.
11. Remove the assembly inner frame.
About this task

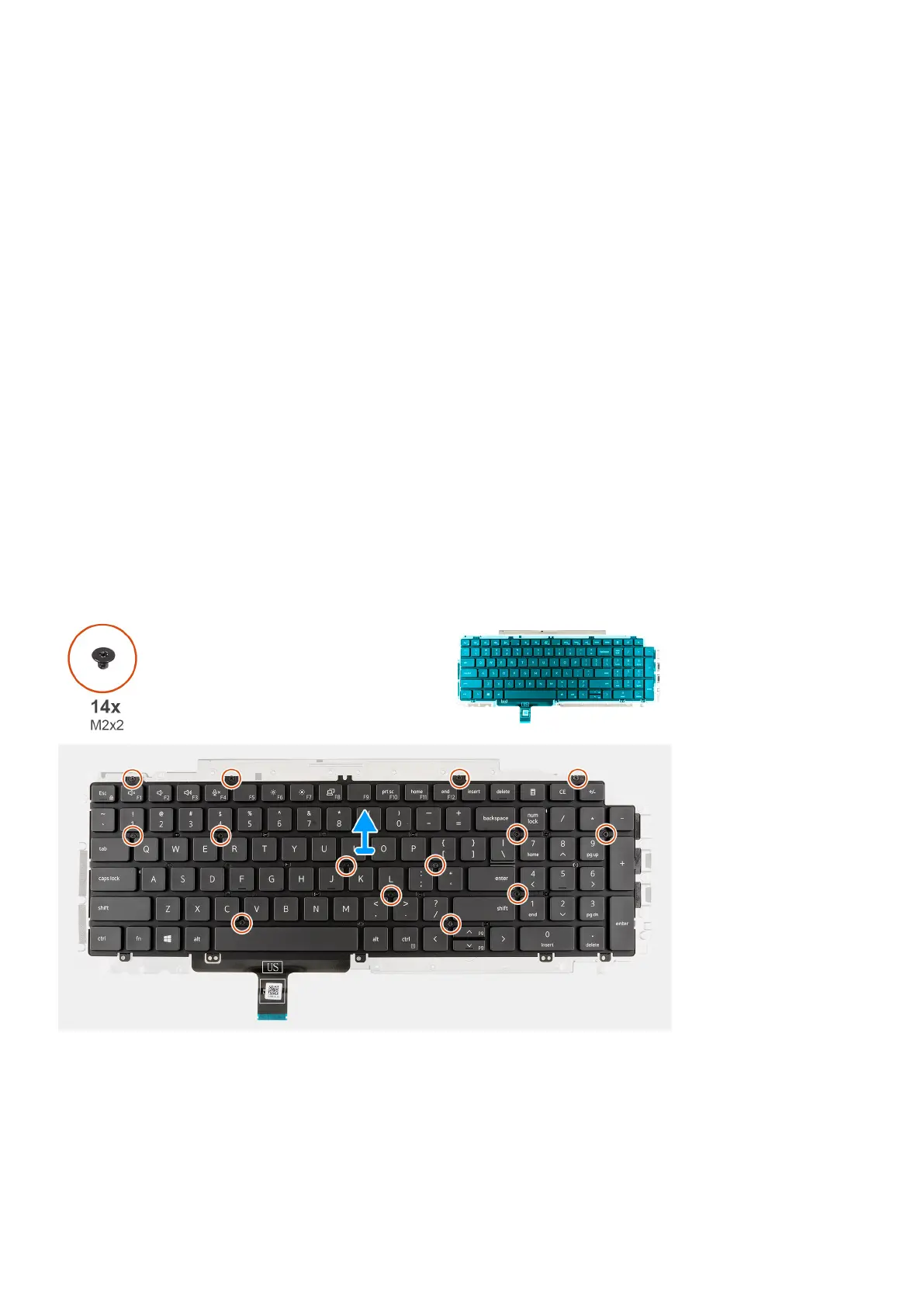

The following images indicate the location of the keyboard bracket and provide a visual representation of the removal procedure.
Steps
1. Remove the fourteen (M2x2) screws that secure the keyboard to the keyboard bracket.
2. Remove the keyboard from the keyboard bracket.
Removing and installing components
69
