Removing the Speakers
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. base cover
b. battery

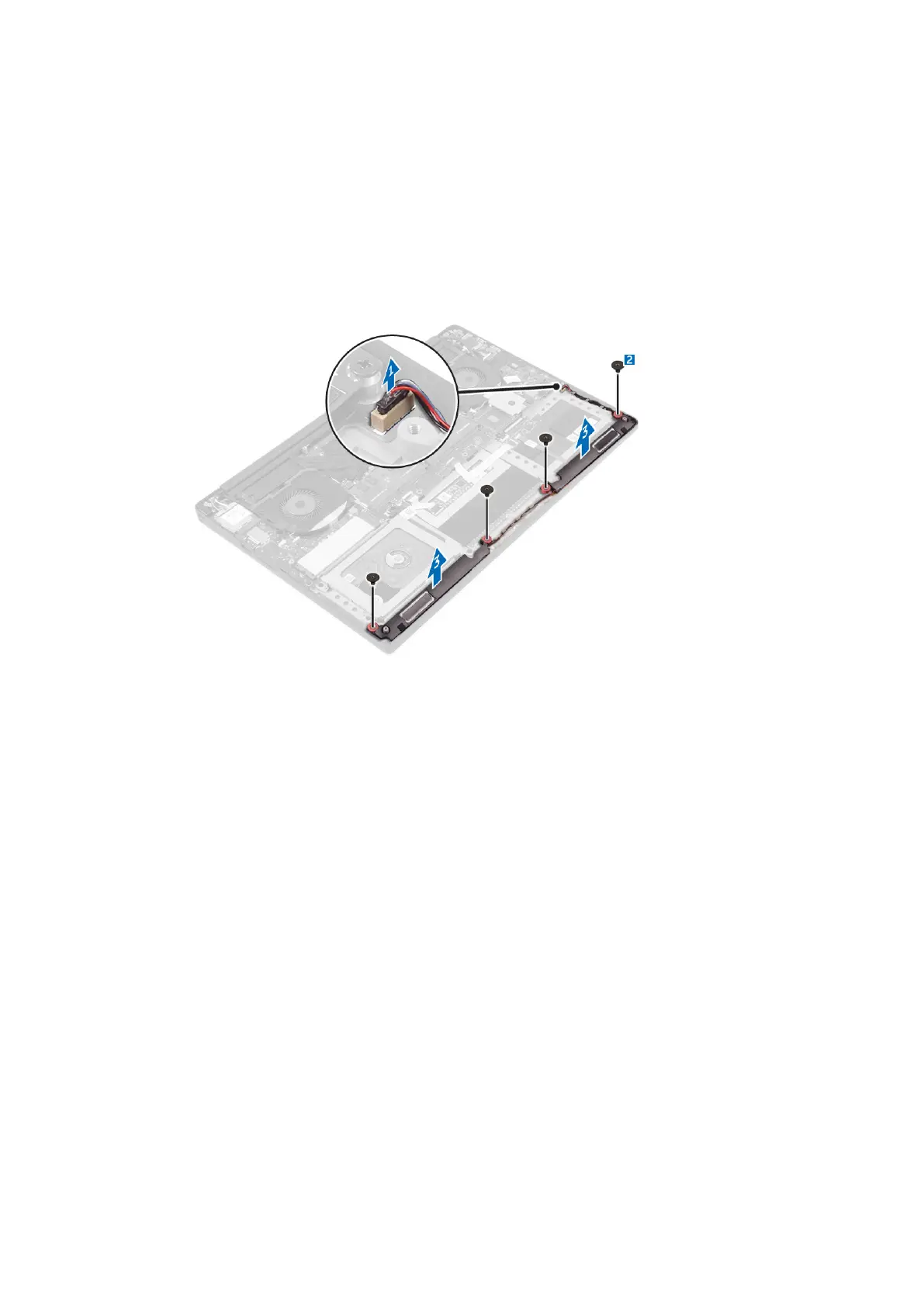

3. Perform the following steps to remove the speaker:
a. Disconnect the speaker cable from the system board [1].
b. Remove the screws that secure the speakers to the computer [2].
c. Lift the speakers, along with the speaker cable, off the computer [3].
Installing the Speakers
1. Using the alignment posts, place the speakers on the palm-rest assembly.
2. Replace the screws that secure the speakers to the palm-rest assembly.
3. Route the speaker cables through the routing guides on the palm-rest assembly.
4. Connect the speaker cable to the system board.
5. Install the:
a. battery
b. base cover
6. Follow the procedures in After Working Inside Your Computer.
Removing the WLAN Card
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. base cover
b. battery
3. Perform the following steps to remove the WLAN card:
a. Remove the screw to release the bracket that secures the WLAN card to the computer [1] and lift the bracket away from
the computer [2].
b. Disconnect the antenna cables from the WLAN card [3].
c. Slide and remove the WLAN card from its connector on the board [4].
14
