Dell Precision 5510 - Installing the Antenna Cover

a. base cover
b. battery
c. WLAN Card
d. display assembly
3. Carefully turn the display hinges at an angle.

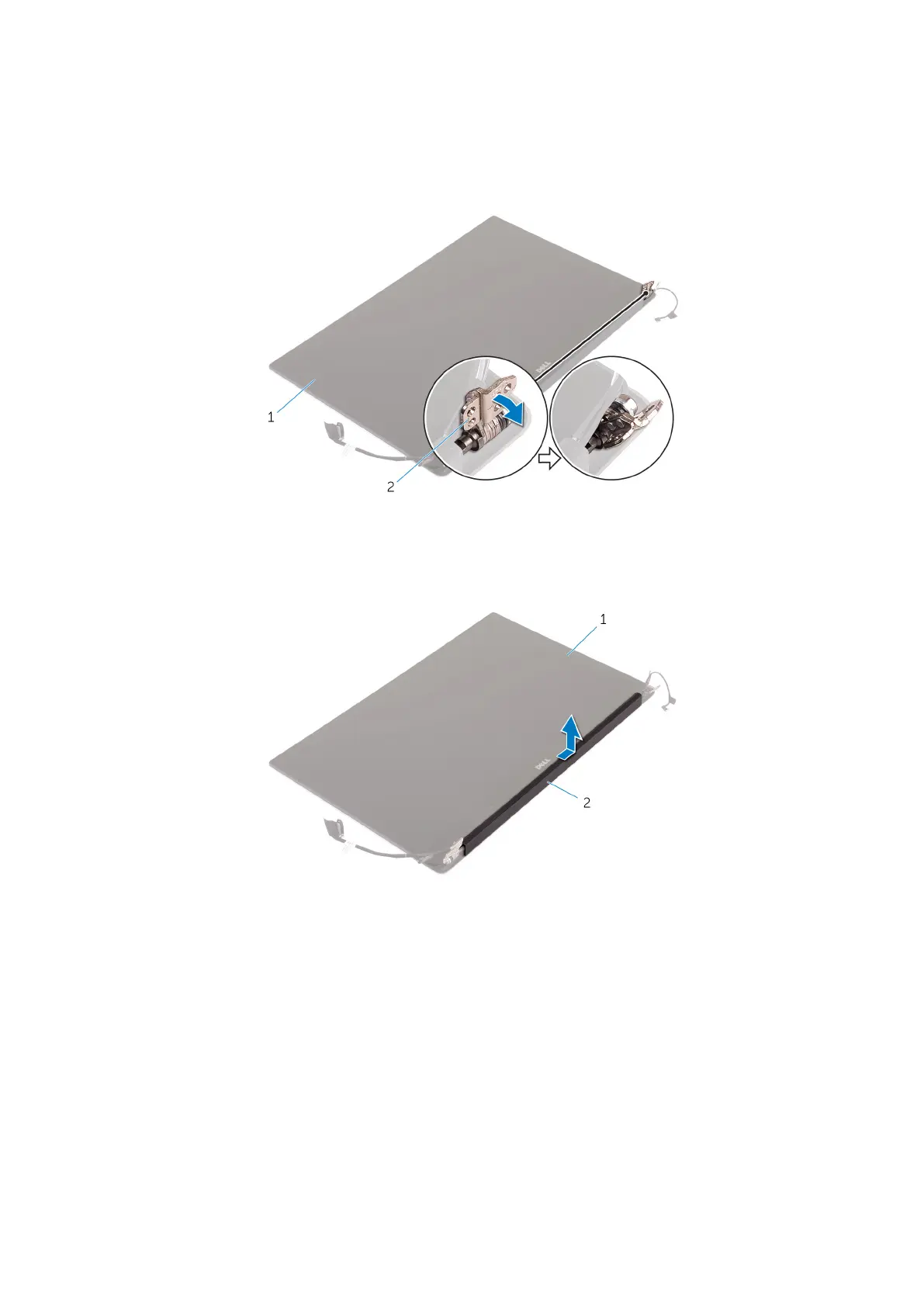

Figure 1. Turning the display hinge
a. display assembly
b. display hinges (2)
4. Slide and lift the antenna cover away from the display assembly.
Figure 2. Removing the antenna cover
a. display assembly
b. antenna cover
Installing the antenna cover
1. Replace the antenna cover on the display assembly.
2. Turn the display hinges to the normal position.
3. Install the:
a. display assembly
b. wireless card
c. battery
d. base cover
