Adding and Replacing Parts 113
2

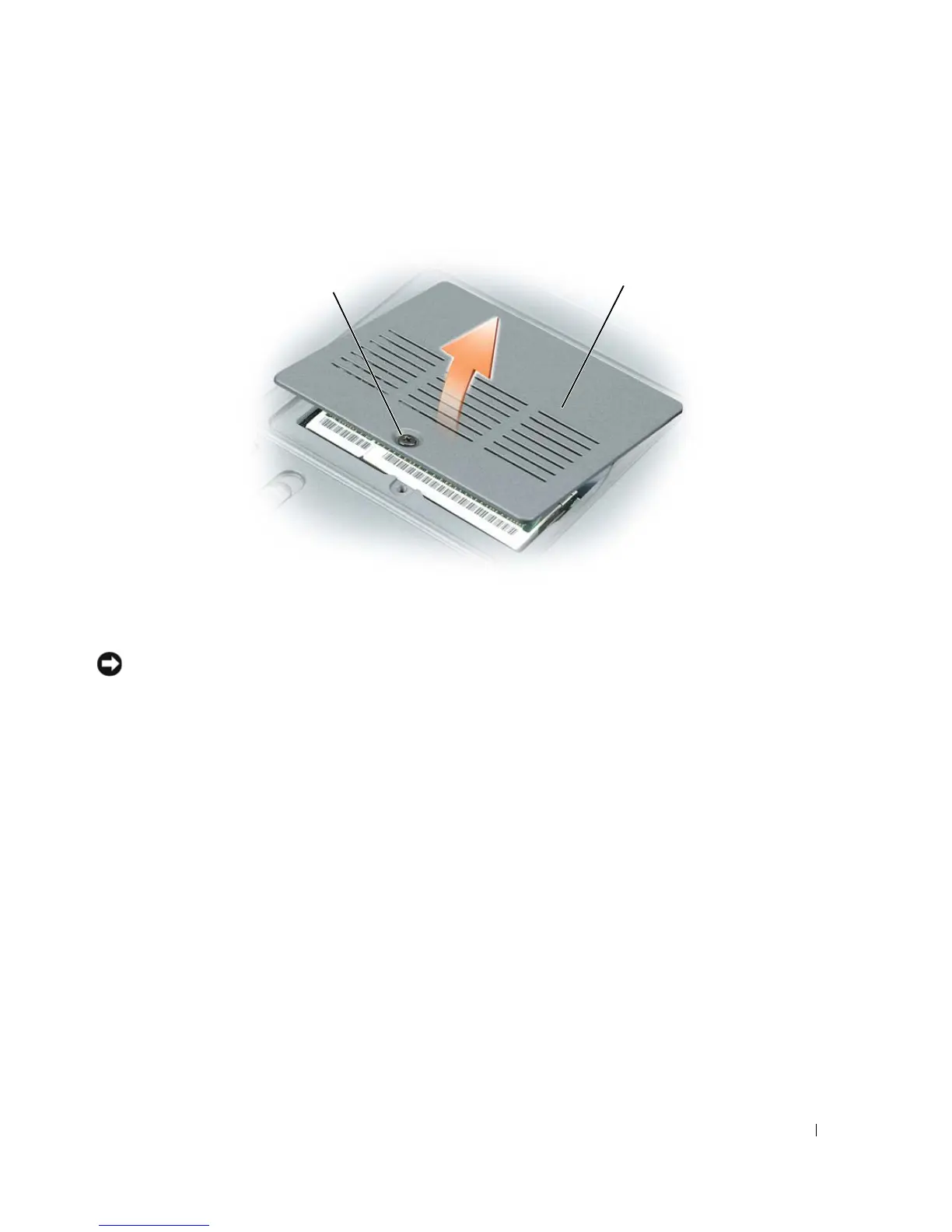

Turn the computer upside-down, loosen the captive screw on the memory module cover, and then
remove the cover.
NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory-module
securing clips.
3
If you are replacing a memory module, remove the existing module:
a
Use your fingertips to carefully spread apart the securing clips on each end of the memory module
connector until the module pops up.
b
Remove the module from the connector.
1 captive screw 2 memory module cover
1
2
