Dell Studio 1435 - Removing the Audio Board; Replacing the Audio Board

Back to Contents Page
 Audio Board
DellStudio™1435ServiceManual
Removing the Audio Board
Replacing the Audio Board

Removing the Audio Board

1. Follow the instructions in Before You Begin.

2. Follow the instructions in Removing the Palm Rest.

3. Remove the two screws that secure the audio board.

4. Lift the audio board out of the computer base.
Replacing the Audio Board

1. Place the audio board in the computer base and replace the two screws that secure it.

2. Follow the instructions in Replacing the Palm Rest.
Back to Contents Page

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.

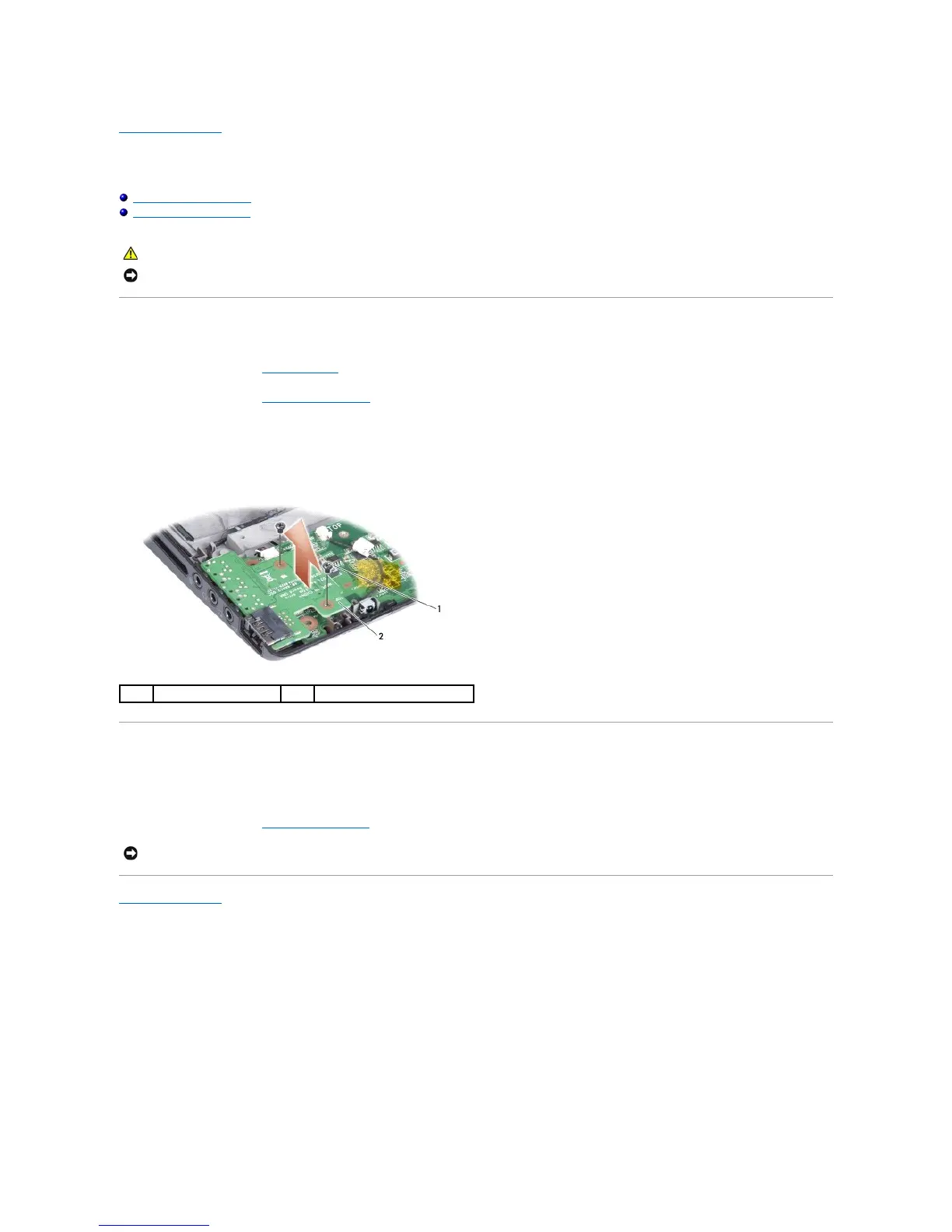

1
screw (2)
2
audio board
NOTICE: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in
damage to the computer.
