 Center Control Cover
DellStudio™1435ServiceManual
Removing the Center Control Cover
Replacing the Center Control Cover


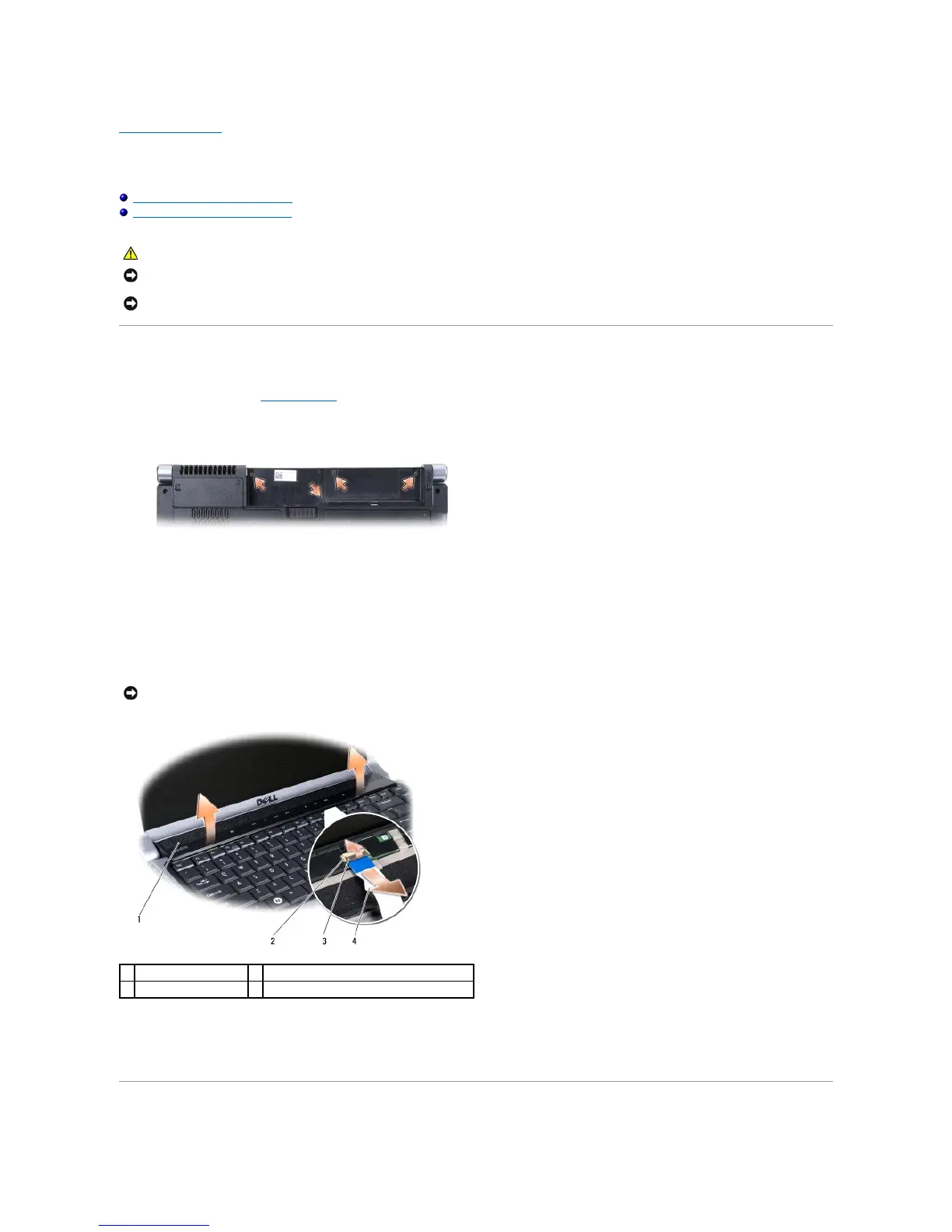

Removing the Center Control Cover

1. Follow the procedures in Before You Begin.

2. Turn the computer over and remove the four screws in the battery bay.

3. Turn the computer top side up, and open the display as far as it will open.

4. Ease the center control cover up with a plastic scribe from the back of the computer.

5. Ease the center control cover up until you see the media control buttons cable that attaches the center control cover to the system board.

6. Release the connector latch that secures the cable to the connector on the center control cover and remove the cable.

7. Lift the center control cover off the computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
NOTICE: Be extremely careful when removing the center control cover. The cover along with the cable that attaches it to the system board are very
fragile.
1
center control cover
2
media control buttons cable connector
3
connector latch
4
media control buttons cable
