 Camera (Optional)
DellStudio™1435ServiceManual
Removing the Camera
Replacing the Camera

Removing the Camera

1. Follow the instructions in Before You Begin.

2. Follow the instructions in Removing the Display Assembly.

3. Remove the display bezel (see Display Bezel).


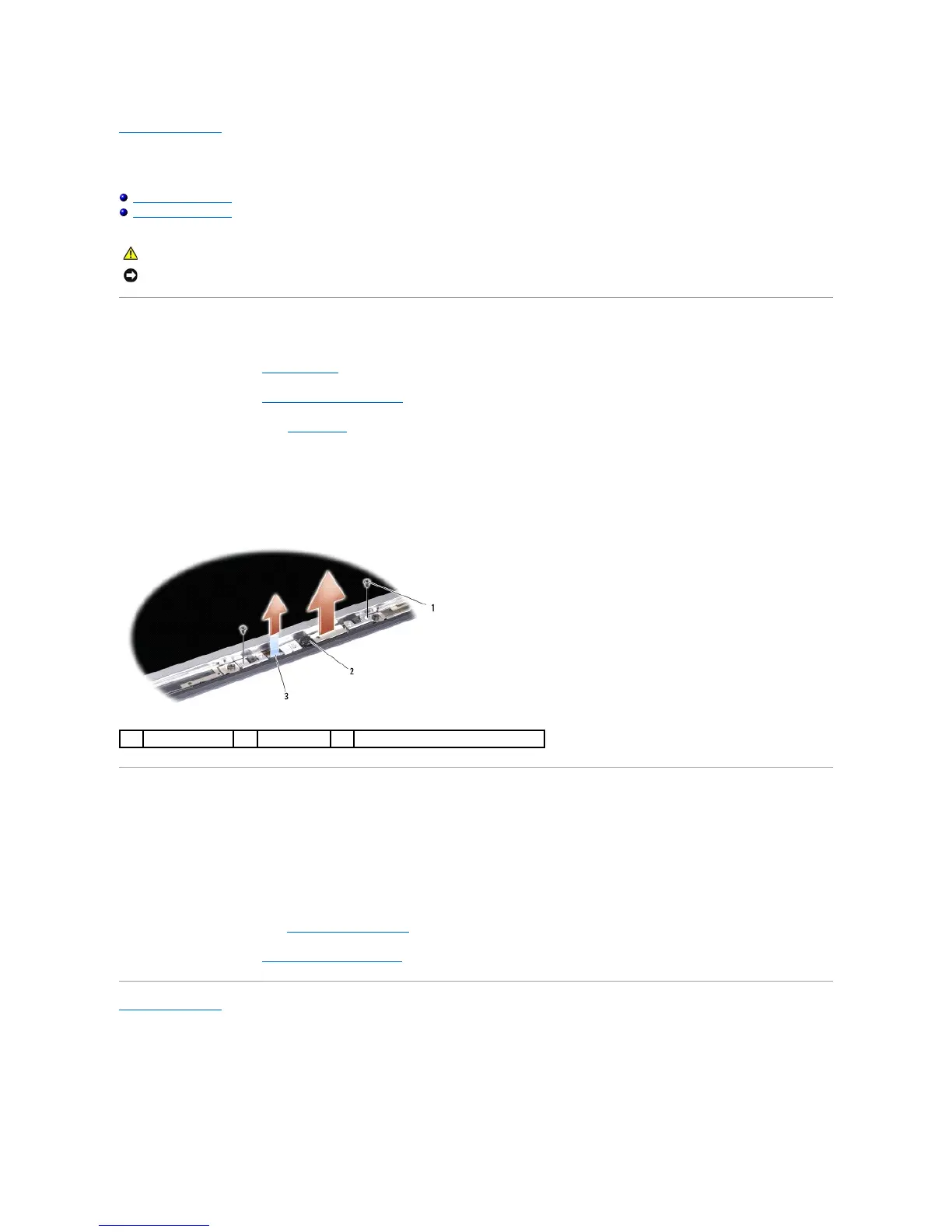

4. Remove the two screws securing the camera board.

5. Release the securing tabs and disconnect the camera cable from the camera board connector.

6. Remove the camera board.
Replacing the Camera

1. Align the camera board over the screw holes.

2. Replace the two screws that secure the camera board to the display cover.

3. Connect the camera cable to the connector on the camera board.

4. Replace the display bezel (see Replacing the Display Bezel).

5. Follow the instructions in Replacing the Display Assembly.
Back to Contents Page

CAUTION: Before working inside your computer, follow the safety instructions that shipped with your computer.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
1
screw (2)
2
camera
3
camera cable pull-tab
