Dell Studio 1435 - Removing the Speakers; Replacing the Speakers

Back to Contents Page
 Speakers
DellStudio™1435ServiceManual
Removing the Speakers
Replacing the Speakers

Removing the Speakers

1. Follow the instructions in Before You Begin.

2. Remove the center control cover (see Removing the Center Control Cover).

3. Remove keyboard (see Removing the Keyboard).

4. Remove the palm rest (see Removing the Palm Rest).

5. Remove the optical drive (see Removing the Optical Drive).

6. Remove the screw that secures the display cable.

7. Pull the display cable pull-tab to disconnect the display cable from the system board connector.

8. Remove the four screws (two on each speaker).

9. Disconnect the speaker cable from the connector on the system board.

10. Make note of the speaker cable routing.

11. Remove the speakers and the cable.
Replacing the Speakers

1. Replace the speakers and the speaker cable.

2. Connect the speaker cable to the connector on the system board.

3. Replace the four screws (two on each speaker).

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.

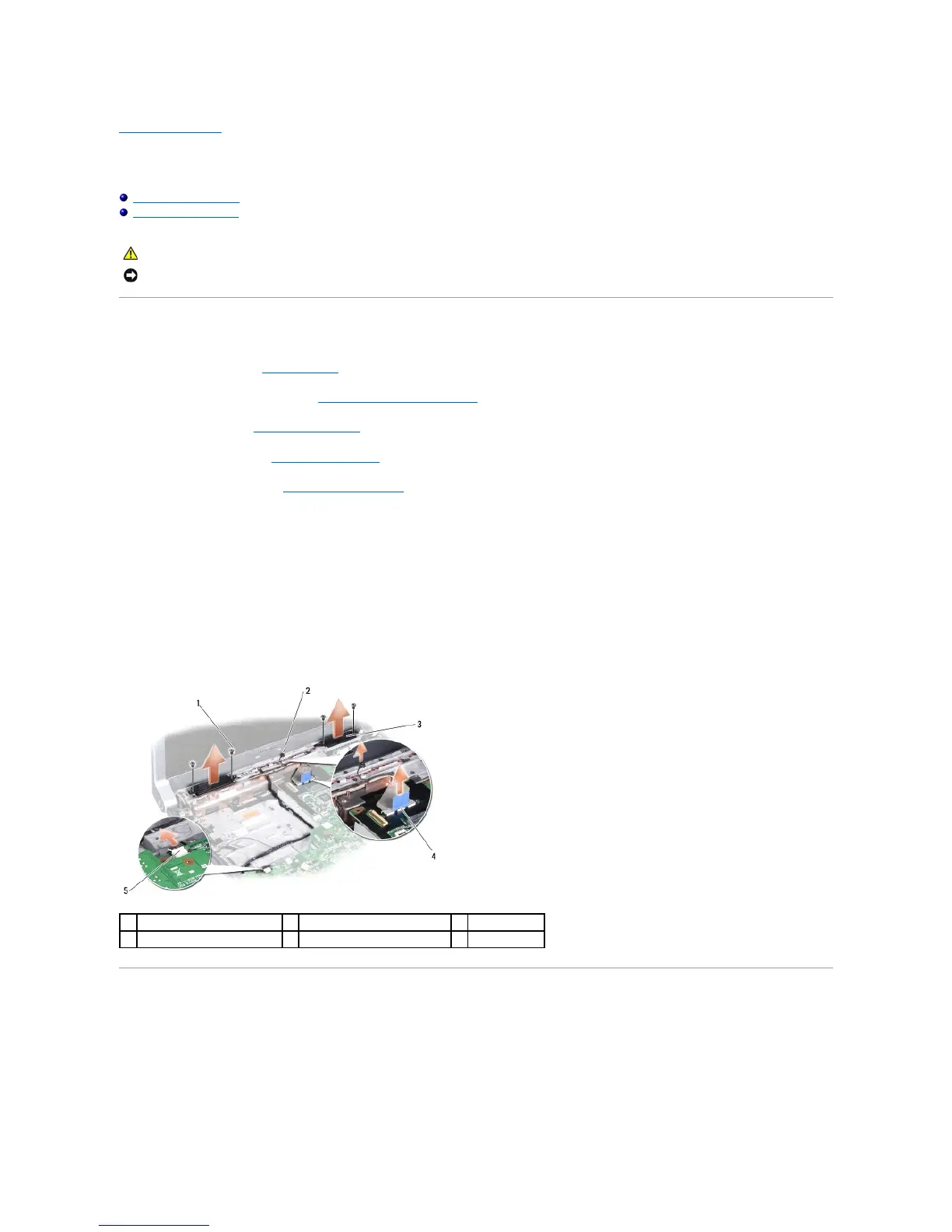

1
screw (4)
2
display cable screw
3
speaker (2)
4
display cable connector
5
speaker cable connector


