Dell Studio 1435 - Removing the Microphone; Replacing the Microphone

Back to Contents Page
 Microphone
DellStudio™1435ServiceManual
Removing the Microphone
Replacing the Microphone

Removing the Microphone

1. Follow the instructions in Before You Begin.

2. Follow the instructions in Removing the Palm Rest.

3. Disconnect the microphone cable from the system board connector.

4. Remove the microphone from the computer base.
Replacing the Microphone

1. Place the microphone in the slot in the computer base.

2. Connect the microphone cable to the connector on the system board.

3. Follow the instructions in Replacing the Palm Rest.

4. Reinstall the memory modules and Mini-Cards, if any.

5. Reinstall the ExpressCards in the ExpressCard slot, if any.
Back to Contents Page

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.

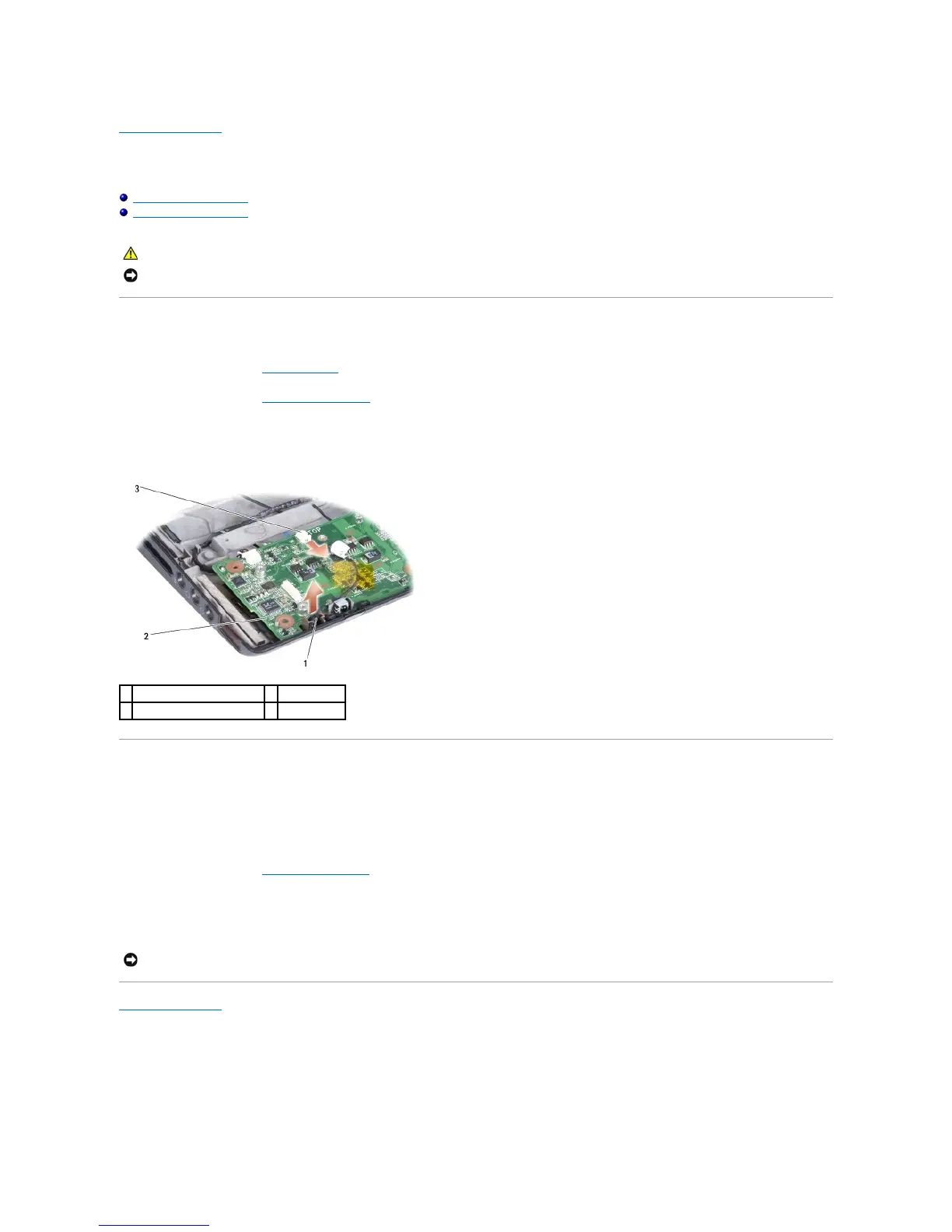

1
microphone
2
system board
3
microphone cable connector


NOTICE: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in
damage to the computer.
