2. Remove the display bezel (see Removing the Display Bezel).

3. Remove the display panel (see Removing the Display Panel).

4. Turn the display panel over and place it on a clean surface.

5. Press the securing clips on either side and disconnect the display cable from the connector on top.

Replacing the Display Panel Cable

1. Connect the display cable to the connector on top.

2. Replace the display panel (see Replacing the Display Panel).

3. Replace the display bezel (see Replacing the Display Bezel).

4. Follow the instructions in Replacing the Display Assembly.
Inverter Board

Removing the Inverter Board

1. Follow the instructions in Removing the Display Assembly.

2. Remove the display bezel (see Removing the Display Bezel).

3. Remove the display panel (see Removing the Display Panel).

4. Turn the display panel and disconnect the cables from the connectors on either side of the inverter board.

5. Lift the inverter board off the display panel.

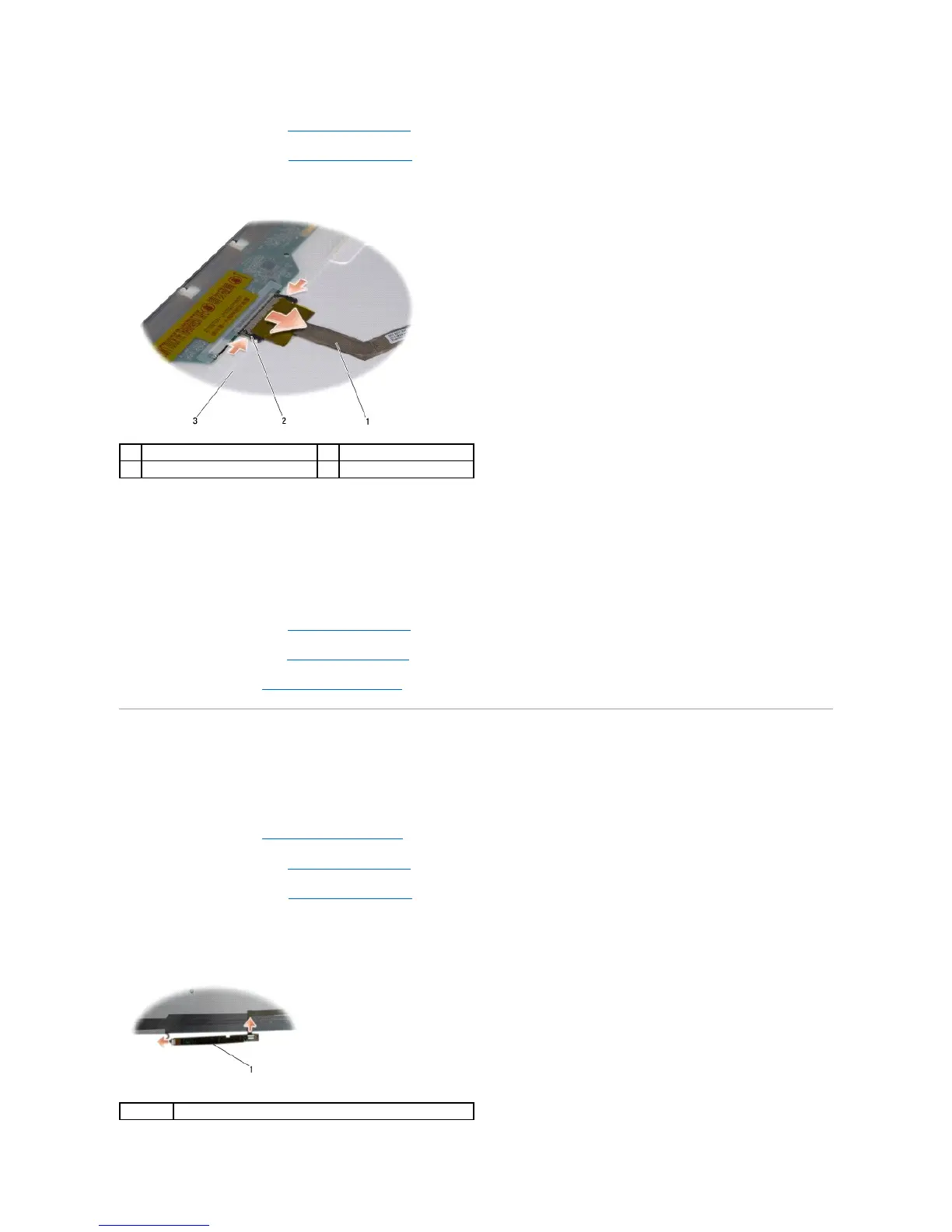

1
display cable
2
securing clip (2)
3
back of display panel


1
inverter board
