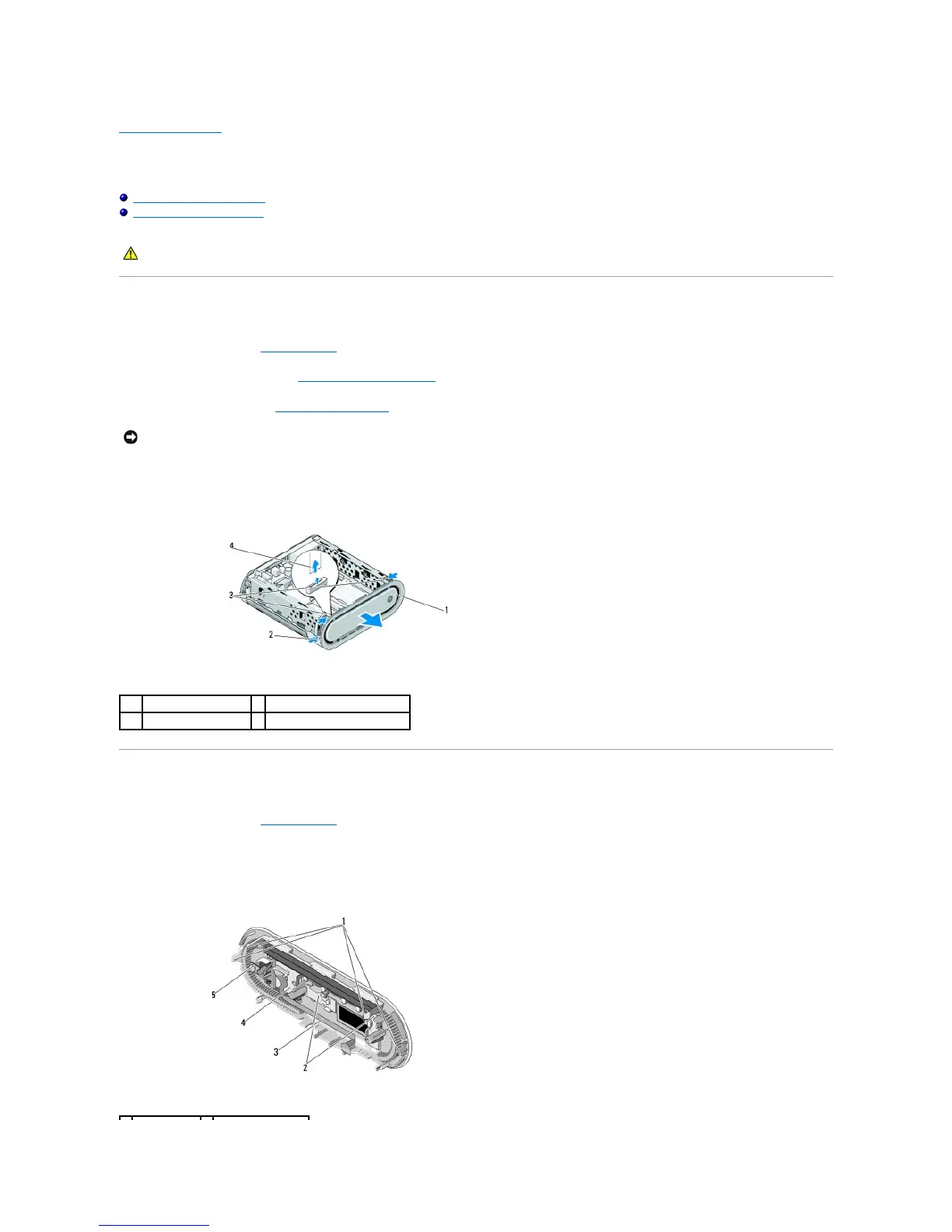

 Replacing the Front I/O Panel
Dell™StudioHybridServiceManual
Removing the Front I/O Panel
Installing the Front I/O Panel

Removing the Front I/O Panel

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the drive cage (see Removing the Drive Cage).

4. Disconnect the flex-cable from the system board, then press the two tabs located on the top and gently pull the front panel away from the chassis.
Installing the Front I/O Panel

1. Follow the procedures in Before You Begin.

2. Connect the flex-cable to the system board (TPB_CON1).

3. Align the four tabs with the corresponding slots on the chassis and gently push the front panel until it snaps into place.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: Carefully note the routing of each cable before you disconnect it, so that you re-route the cable correctly. An incorrectly routed or a
disconnected cable could lead to computer problems.
1
front panel
2
bottom tabs (2)
3
top tabs (2)
4
flex-cable
