Replacing the Power Switch Assembly
Dell™StudioHybridServiceManual
Removing the Power Switch Assembly
Installing the Power Switch Assembly
Removing the Power Switch Assembly
1. Follow the procedure in Before You Begin.
2. Remove the computer cover (see Removing the Computer Cover).
3. Remove the drive cage (see Removing the Drive Cage).
4. Remove the front panel (see Removing the Front I/O Panel).
5. Remove the RF receiver board (see Removing the RF Receiver Board).
6. Disconnect the power cable from the system board( F_PANEL_CON1).

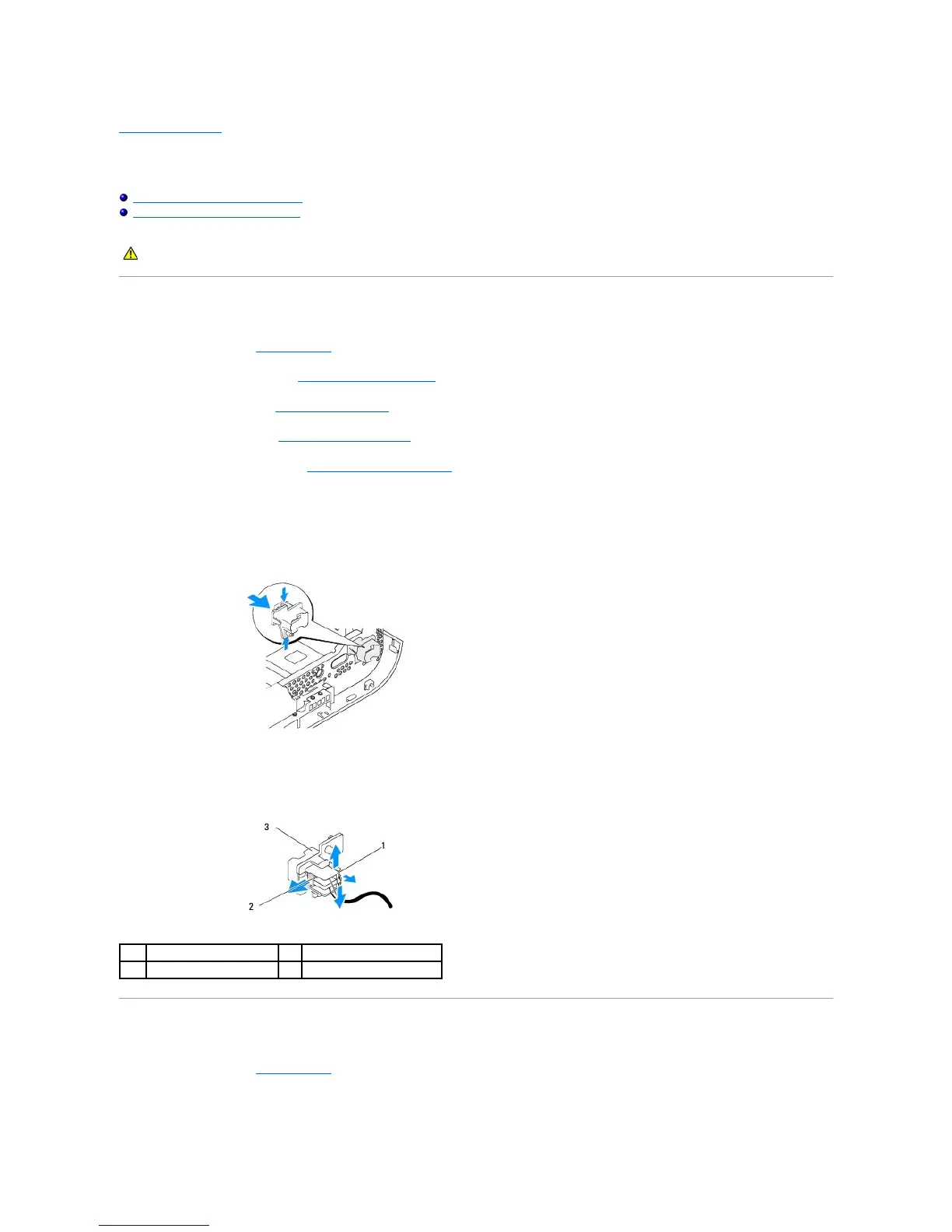

7. Press the latches on either side of the power switch holder and push the power switch holder towards the front of the chassis.
8. Remove the power switch and the LED from the power switch holder as shown below.
Installing the Power Switch Assembly
1. Follow the procedure in Before You Begin.
2. Replace the power switch and the LED into the power switch holder.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
