 Replacing the Heat Sink
Dell™StudioHybridServiceManual
Removing the Heat Sink
Installing the Heat Sink


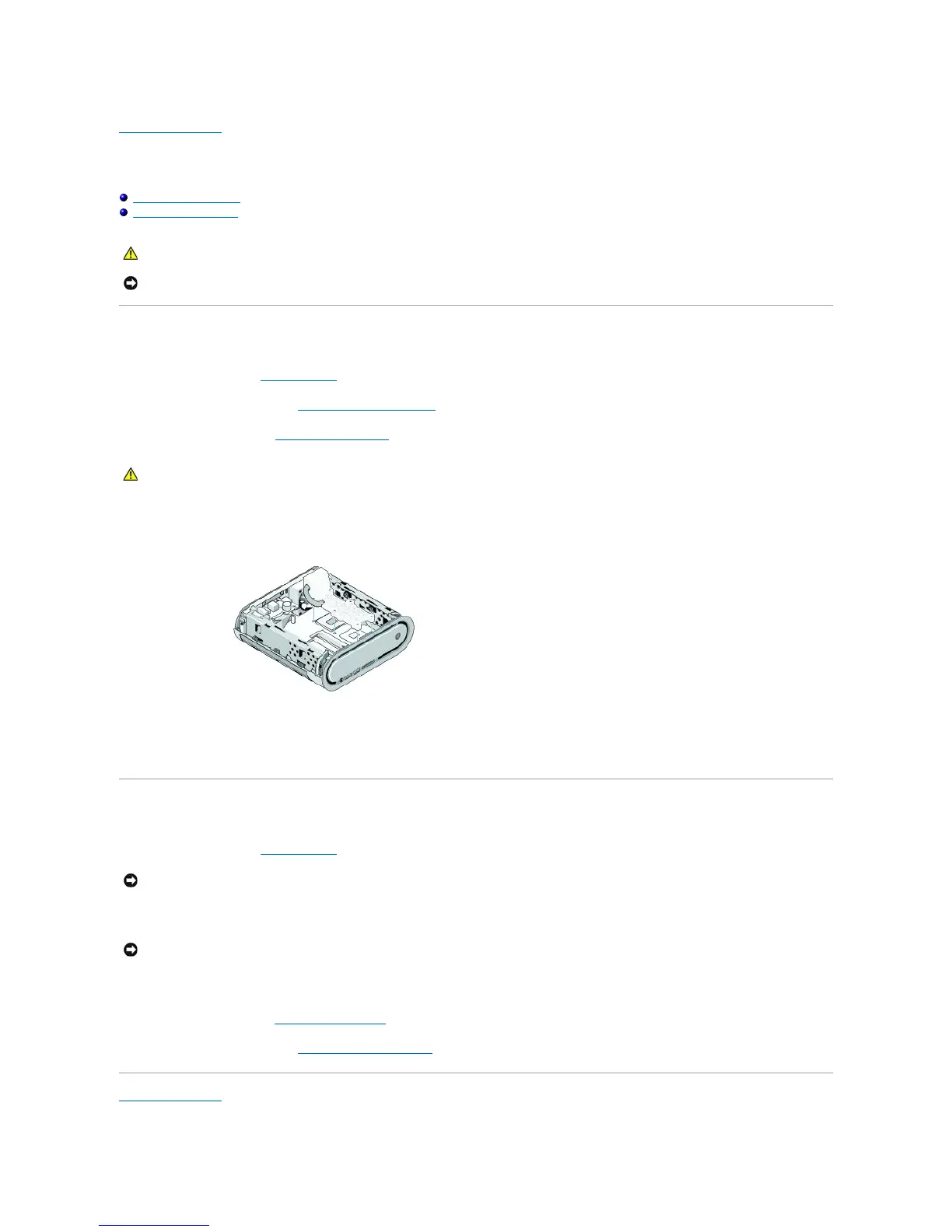

Removing the Heat Sink

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).

3. Remove the drive cage (see Removing the Drive Cage).


4. Use the marked sequence on the heat sink, to loosen the six captive screws securing the heat sink to the system board.

5. Lift the processor heat sink away from the system board.
Installing the Heat Sink

1. Follow the procedures in Before You Begin.

2. Align the six captive screws on the processor heat sink with the holes on the system board.

3. Use the marked sequence on the processor heat sink to tighten the six captive screws.

4. Replace the drive cage (see Installing the Drive Cage).

5. Replace the computer cover (see Installing the Computer Cover).
