Dell Vostro 1540 - Palm Rest Replacement

8
Removing The Palm Rest
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the keyboard.

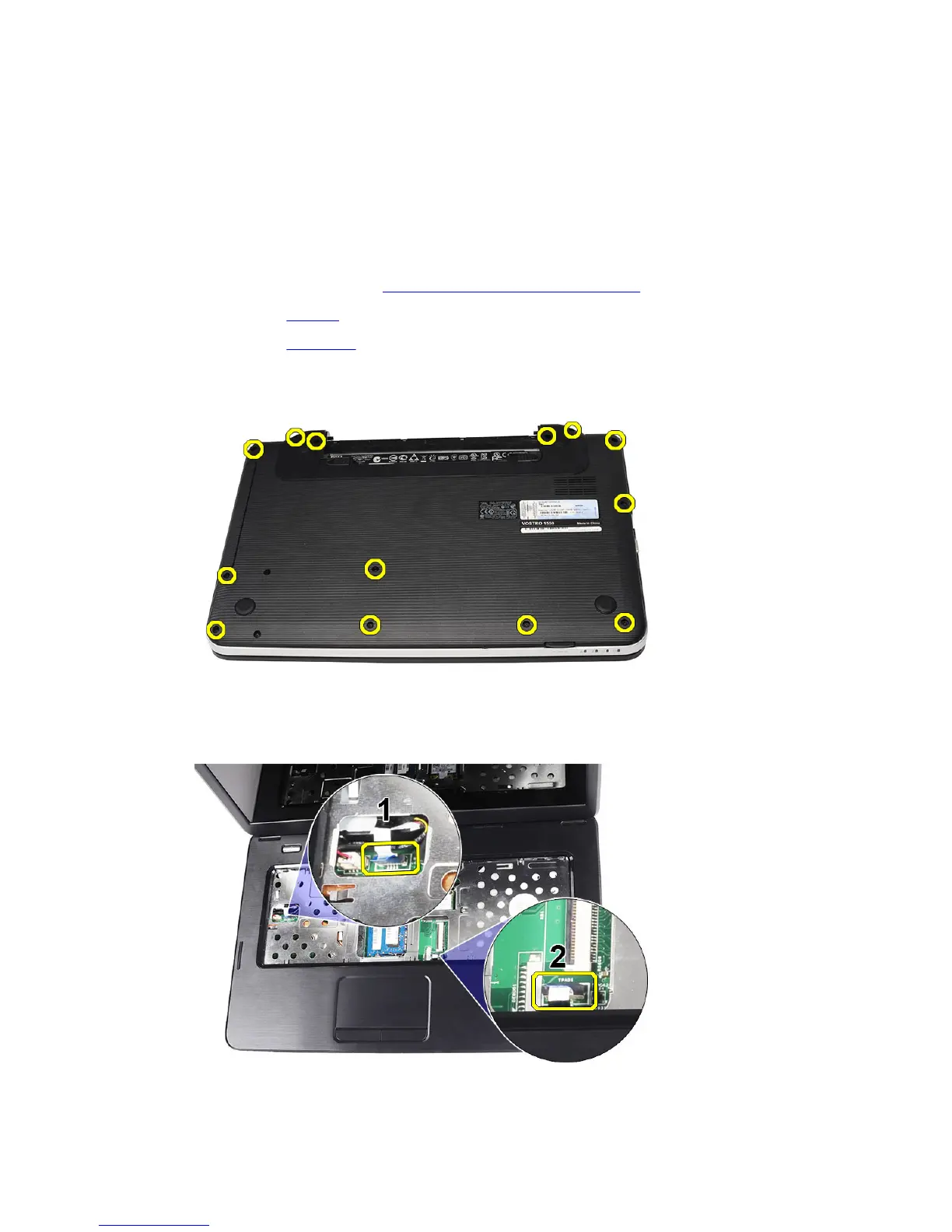

4. Remove the screws that secure the bottom base.
5. Flip the computer around and disconnect the power board cable (1) and the
touchpad cable (2).
6. Remove the screws that secure the palm rest to the computer.
