About this task

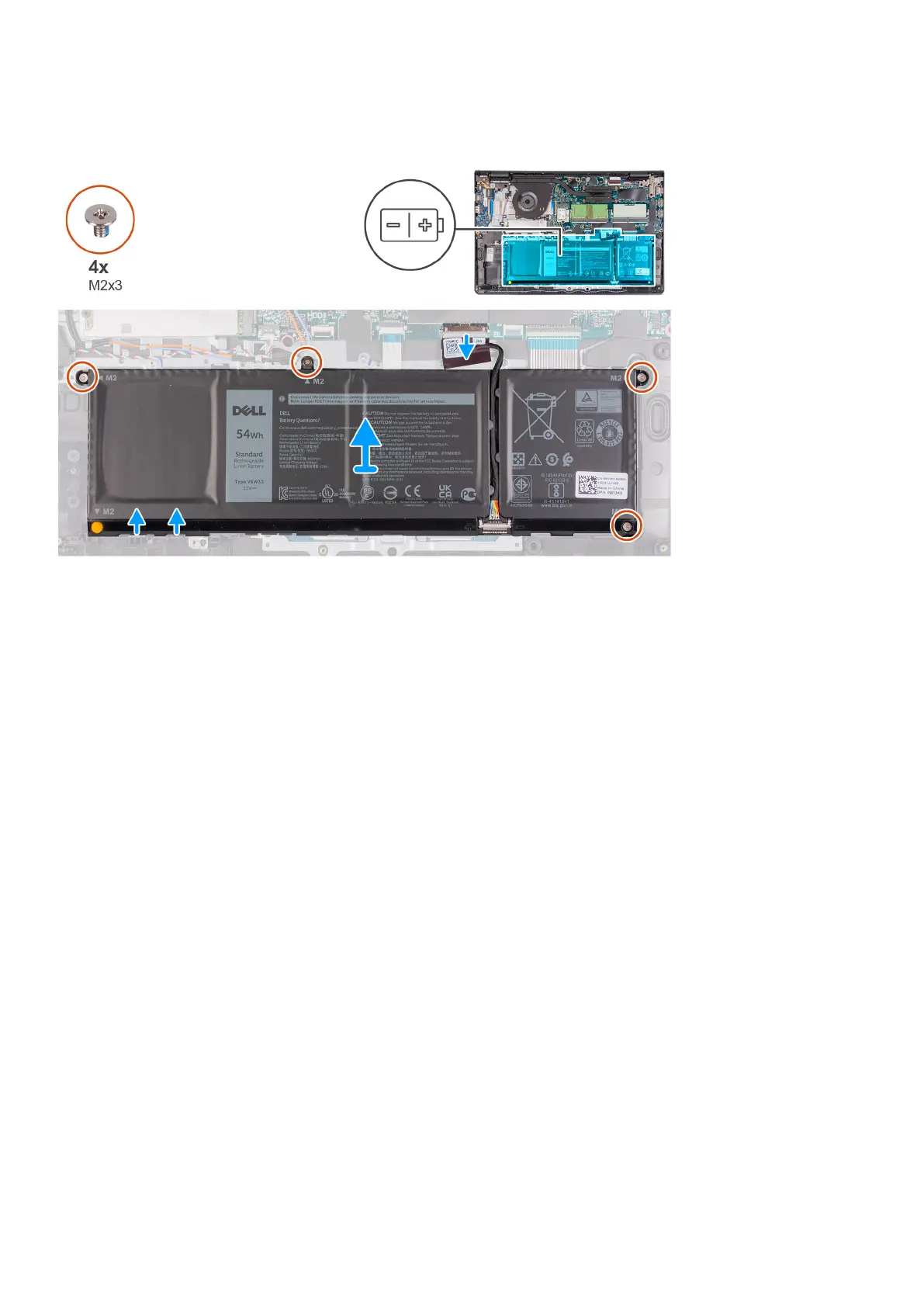

The following images indicate the location of the battery and provides a visual representation of the installation procedure.
Steps
1. Disconnect the battery cable from the connector on the system board.
2. Remove the four (M2x3) screws that secure the battery to the palmrest.
3. Lift and move the battery away from the computer.
Installing the 4-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the battery and provides a visual representation of the installation procedure.
Removing and installing components
23
