Steps

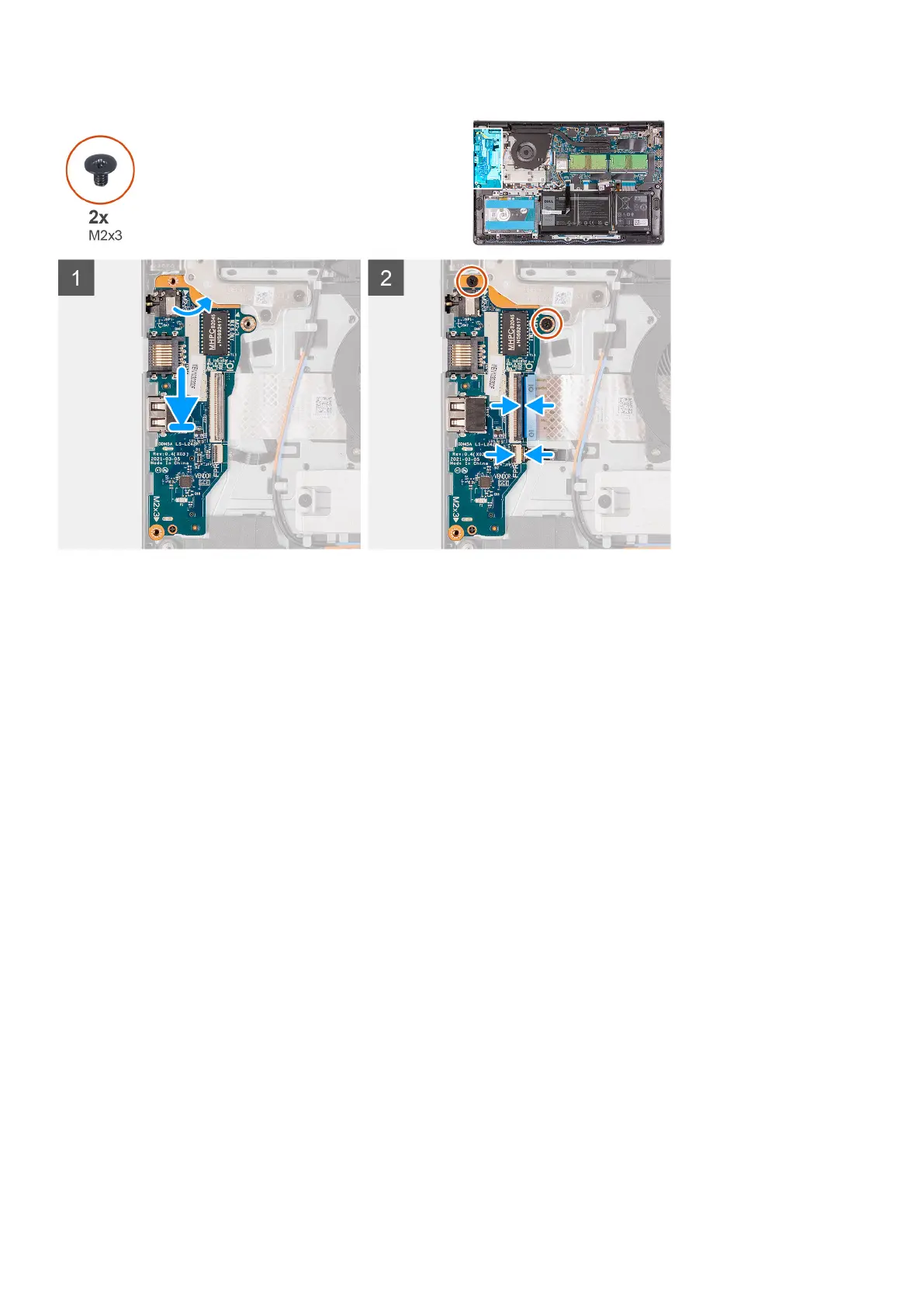

1. Place the I/O board on the palmrest and keyboard assembly.
2. Align the screw holes on the I/O board to the screw holes on the palmrest and keyboard assembly.
3. Replace the two screws (M2x3) that secure the I/O board to the palmrest and keyboard assembly.
4. Connect the fingerprint reader board cable to the connector on the I/O board and close the latch.
5. Connect the I/O board power cable to the connector on the I/O board and close the latch.
Next steps
1. Install the base cover.
2. Reconnect the SD card.
3. Follow the procedure in After working inside your computer.
Hard drive assembly
Removing the hard drive assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task
The following images indicate the location of the hard drive assembly and provides a visual representation of the removal
procedure.
34
Removing and installing components
