Steps

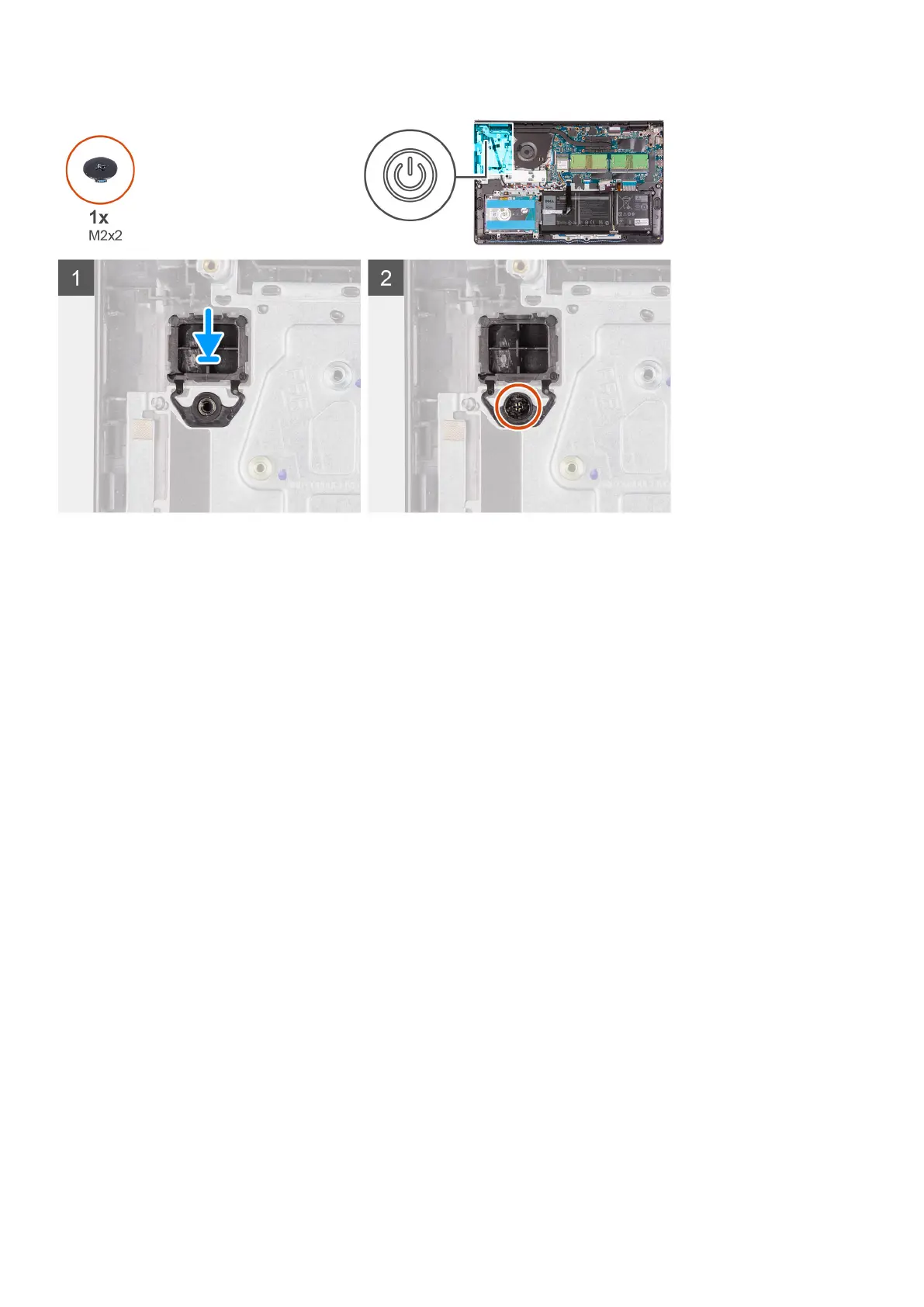

1. Place the power-button board into the slot on the palm-rest and keyboard assembly.
2. Install the single (M2x2) screws to secure the power button to the palm-rest and keyboard assembly.
3. Close the display hinge.
4. Replace the two (M2.5x5) screws that secure the display hinge to the palmrest and keyboard assembly.
Next steps
1. Install the IO board.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in after working inside your computer.
Power-button with optional fingerprint reader
Removing the power button with optional fingerprint reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the I/O board.
About this task
The following images indicate the location of the power button with optional fingerprint reader and provides a visual
representation of the removal procedure.
46
Removing and installing components
