Steps
1. Remove the two (M2.5x5) screws that secure the display assembly hinge to the palmrest and keyboard assembly.

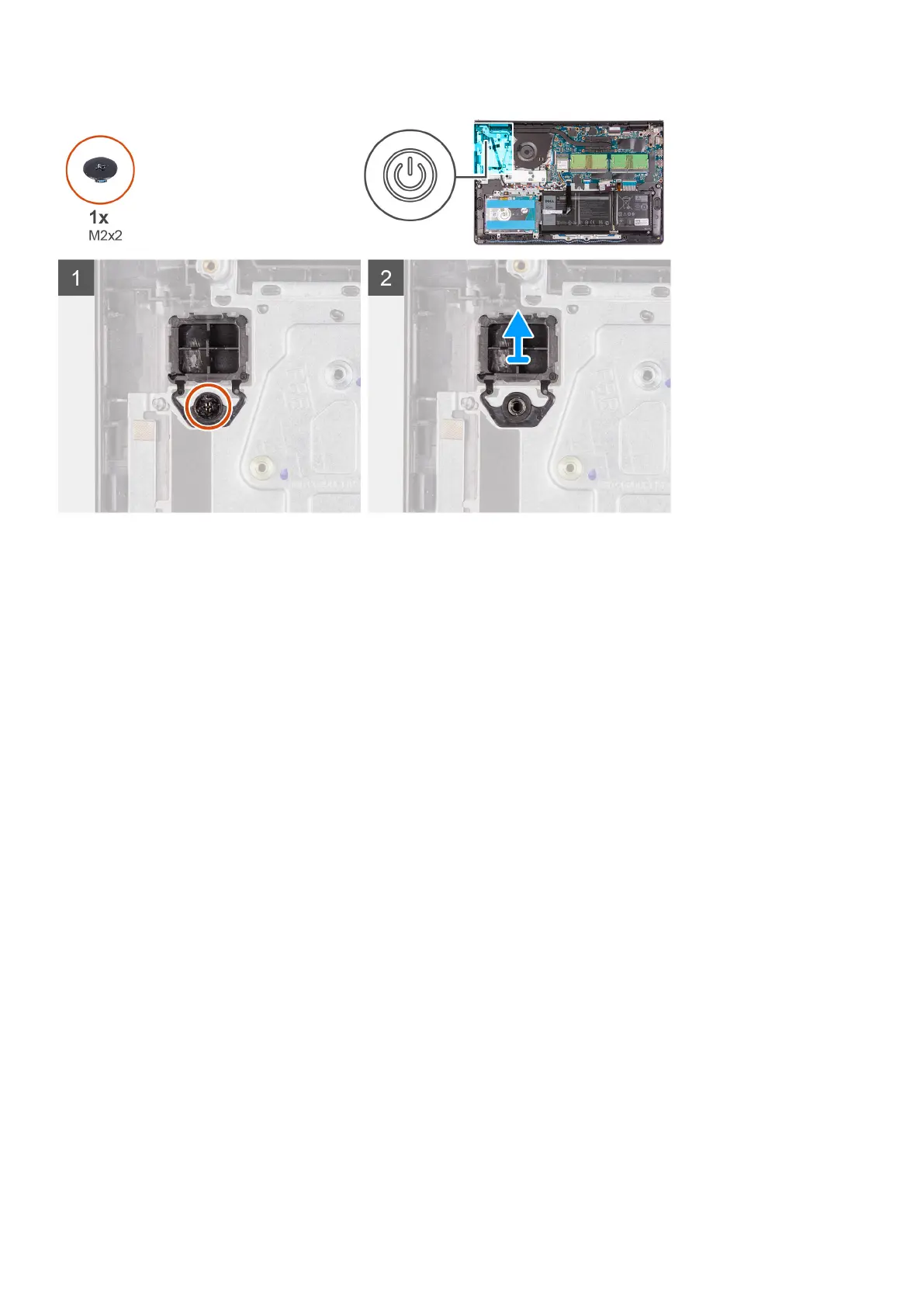

2. Lift the display assembly hinge to access the power button.
3. Remove the single (M2x2) screws securing the power button to the palm-rest and keyboard assembly.
4. Remove the power button from the computer.
Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power button and provides a visual representation of the installation
procedure.
Removing and installing components
45
