Steps

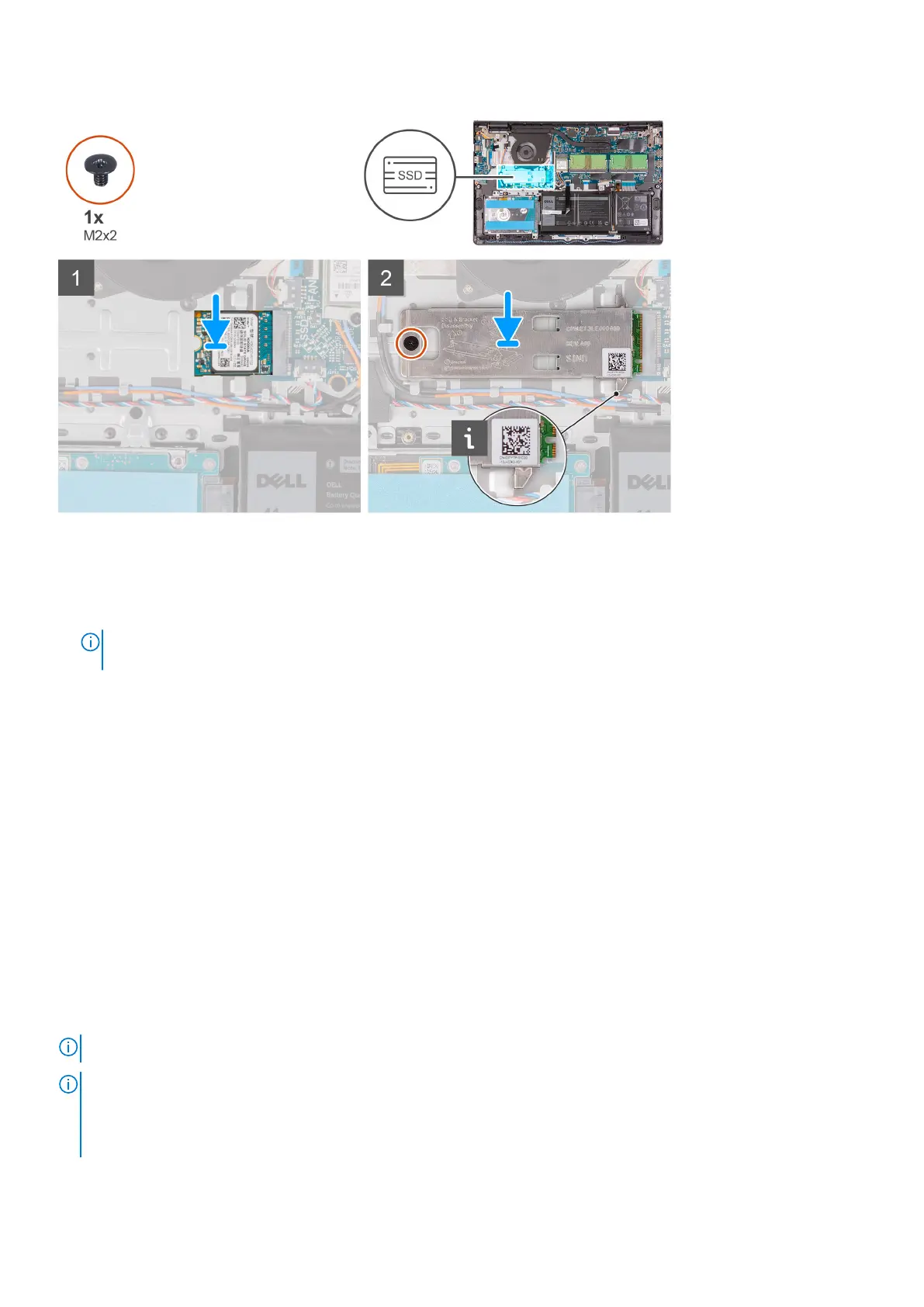

1. Align the notch on the M.2 2230 solid-state drive with the tab on the M.2 card slot on the system board..
2. Slide the M.2 2230 solid-state drive into the M.2 card slot on the system board .
3. Place the M.2 thermal plate on the M.2 2280 solid-state drive.
NOTE:
When installing the M.2 solid-state drive to the system, tuck the tabs on the thermal plate under the hooks on
the palm rest.
4. Align the screw holes on the M.2 thermal plate with the screw holes on the palmrest and keyboard assembly.
5. Replace the (M2x2) screw that secures the M.2 thermal plate to the palmrest and keyboard assembly
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task
NOTE: This procedure applies only to computers shipped with a M.2 2280 solid-state drive installed.
NOTE: The M.2 card installed on your computer will depend on the configuration ordered. Supported card configurations on
the M.2 card slot:
● M.2 2230 solid-state drive + 2230 mounting bracket
● M.2 2280 solid-state drive
28 Removing and installing components
