6. Remove the M.2 2280 solid-state drive.
7. Remove the wireless card.
8. Remove the I/O board.
9. Remove the hard drive assembly.
10. Remove the memory modules.
11. Remove the speakers.
12. Remove the heat sink.
13. Remove the fan.
14. Remove the power button.
15. Remove the display assembly.
16. Remove the touchpad.
17. Remove the system board.
NOTE: The system board can be removed along with the heat sink.
18. Remove the power-adapter port.
About this task

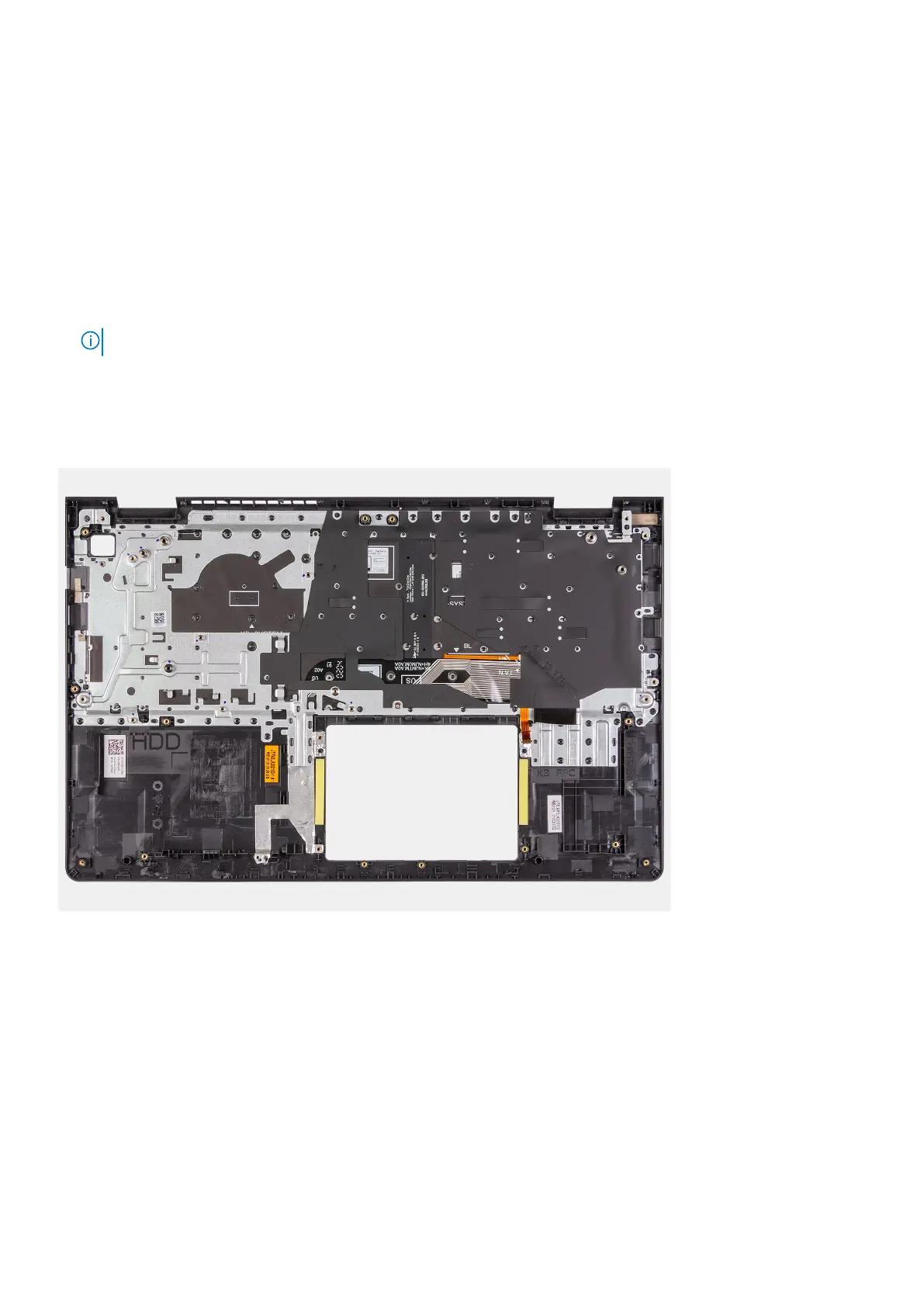

The following images indicate the location of the palmrest and keyboard assembly and provides a visual representation of the
removal procedure.
Steps
After performing the pre-requisites you are left with the palm-rest and keyboard assembly.
Installing the palmrest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the palmrest and keyboard assembly and provides a visual representation of the
installation procedure.
76
