5. Fold back the right hinge and replace the two (M2.5x5) screws to secure it to the palmrest.
Next steps
1. Install the wireless card.
2. Install the heat sink.
3. Install the fan.
4. Install the memory modules.
5. Install the M.2 2230 solid-state drive.
6. Install the M.2 2280 solid-state drive.
7. Install the battery.
8. Install the base cover.
9. Install the SD card.
10. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task

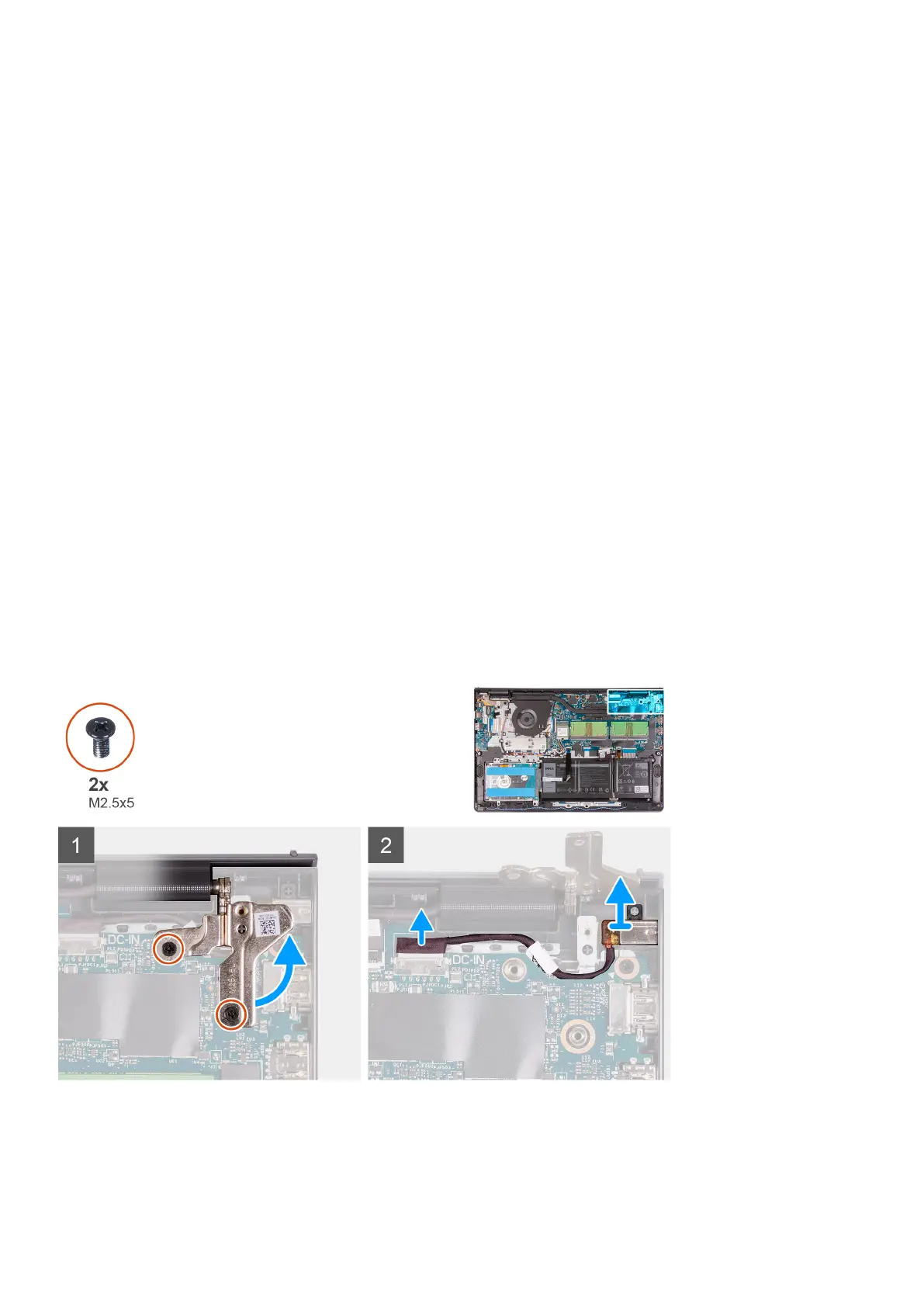

The following images indicate the location of the power-adapter port and provides a visual representation of the removal
procedure.
Steps
1. Remove the two (M2.5x5) screws that secure the right hinge to the palmrest and keyboard assembly
2. Disconnect the power-adapter cable from the connector on the system board.
3. Lift the power-adapter port from its slot on the palmrest and keyboard assembly.
74
Removing and installing components
