10. Remove the wireless card.
About this task

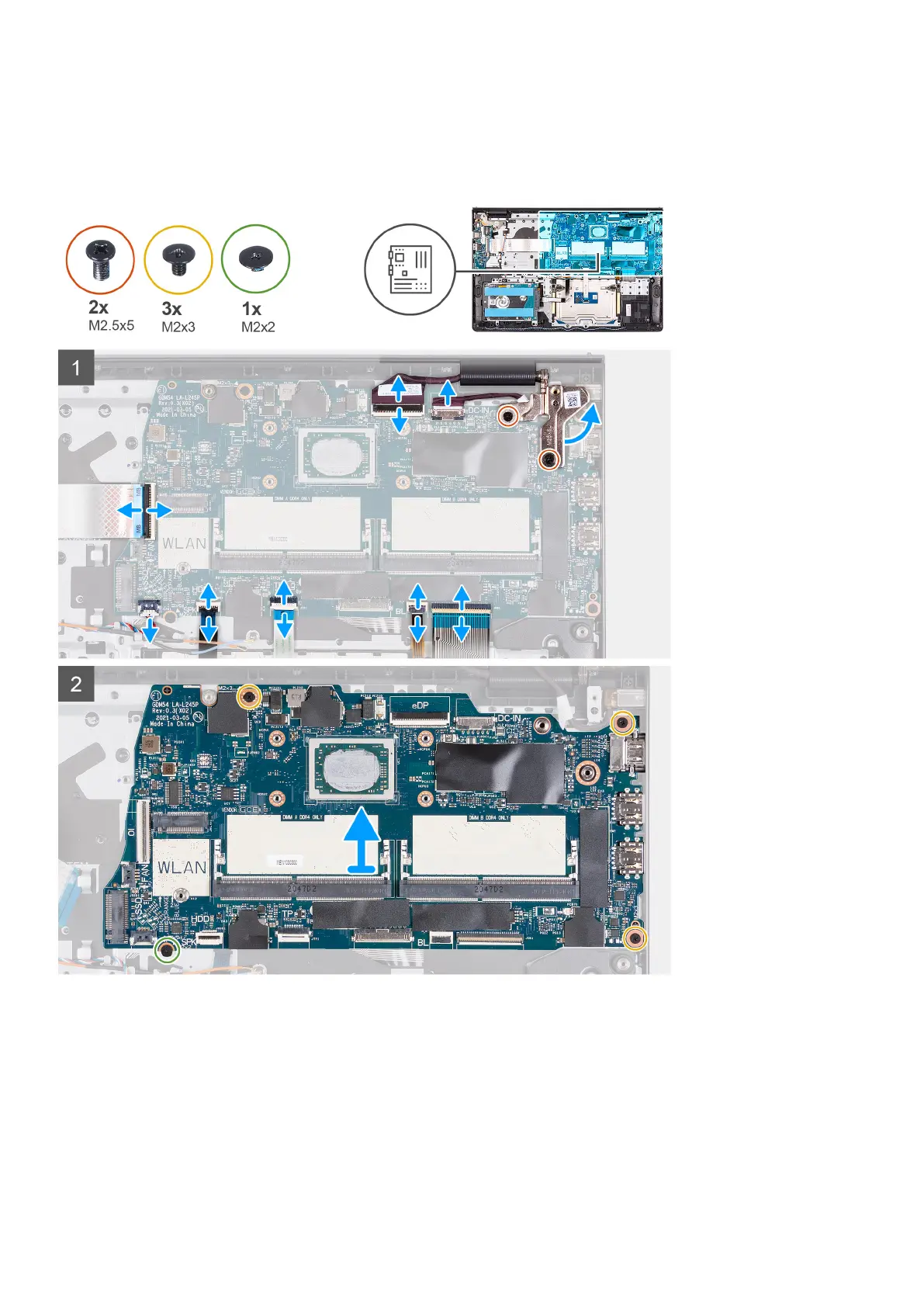

The following images indicate the location of the system board and provides a visual representation of the removal procedure.
Steps
1. Remove the two (M2.5x5) screws from the right hinge.
2. Fold the right hinge up.
3. Disconnect the following cables from the system board:
a. I/O board Flexible Flat cable
b. Speaker cable
c. Hard drive Flexible Flat cable
d. Touchpad Flexible Flat cable
e. Keyboard backlight Flexible Printed cable
Removing and installing components
