3

Memory Card

Removing The Memory Card

1. Follow the procedures in

Before Working On Your Computer

.

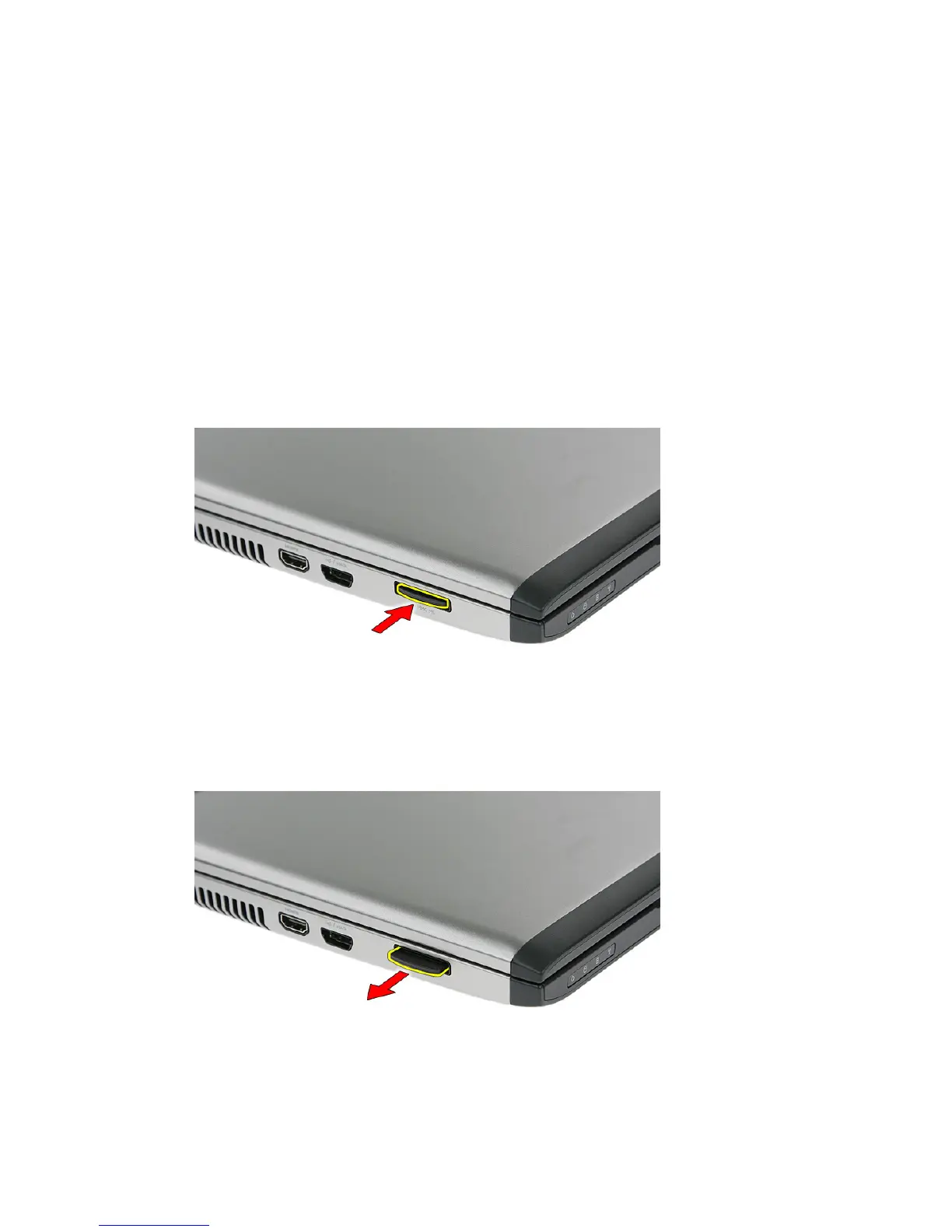

2. Press in on the memory card to release it from the computer.

3. Slide the memory card out of the computer.
