Dell Vostro 3550 - How to Install the System Board

Installing The System Board

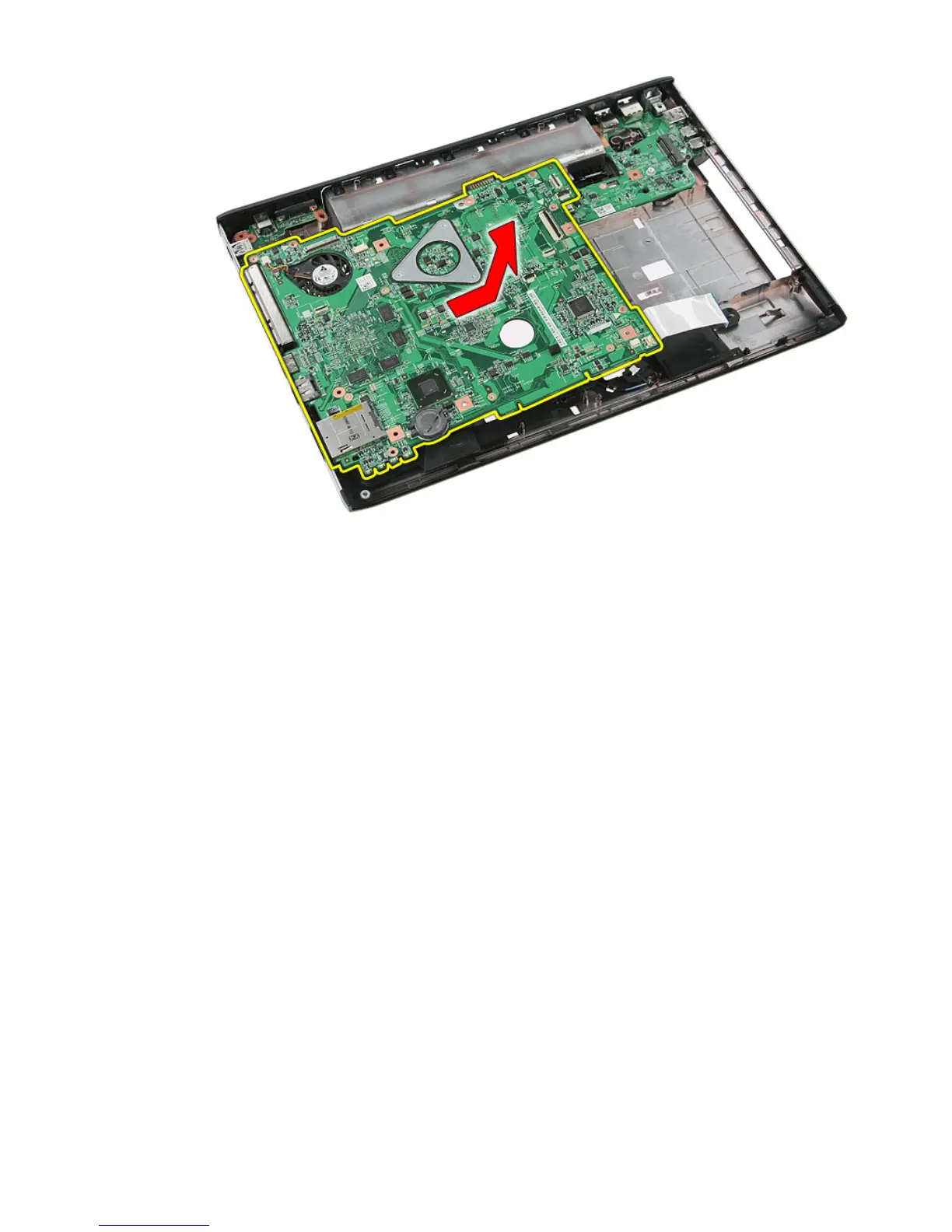

1. Align the system board to the port connectors on the rear of the chassis
and place the system board in the computer.
2. Tighten the screws to secure the system board in place.
3. Install the speaker cable.
4. Install the display assembly .
5. Install the
ExpressCard board .
6. Install the hold switch .
7. Install the
WLAN card .
8. Install the palm rest .
9. Install the keyboard .
10. Install the
WWAN card .
11. Install the hard drive .
12. Install the optical drive .
13. Install the
memory module .
14. Install the access panel .
15. Install the
battery .
