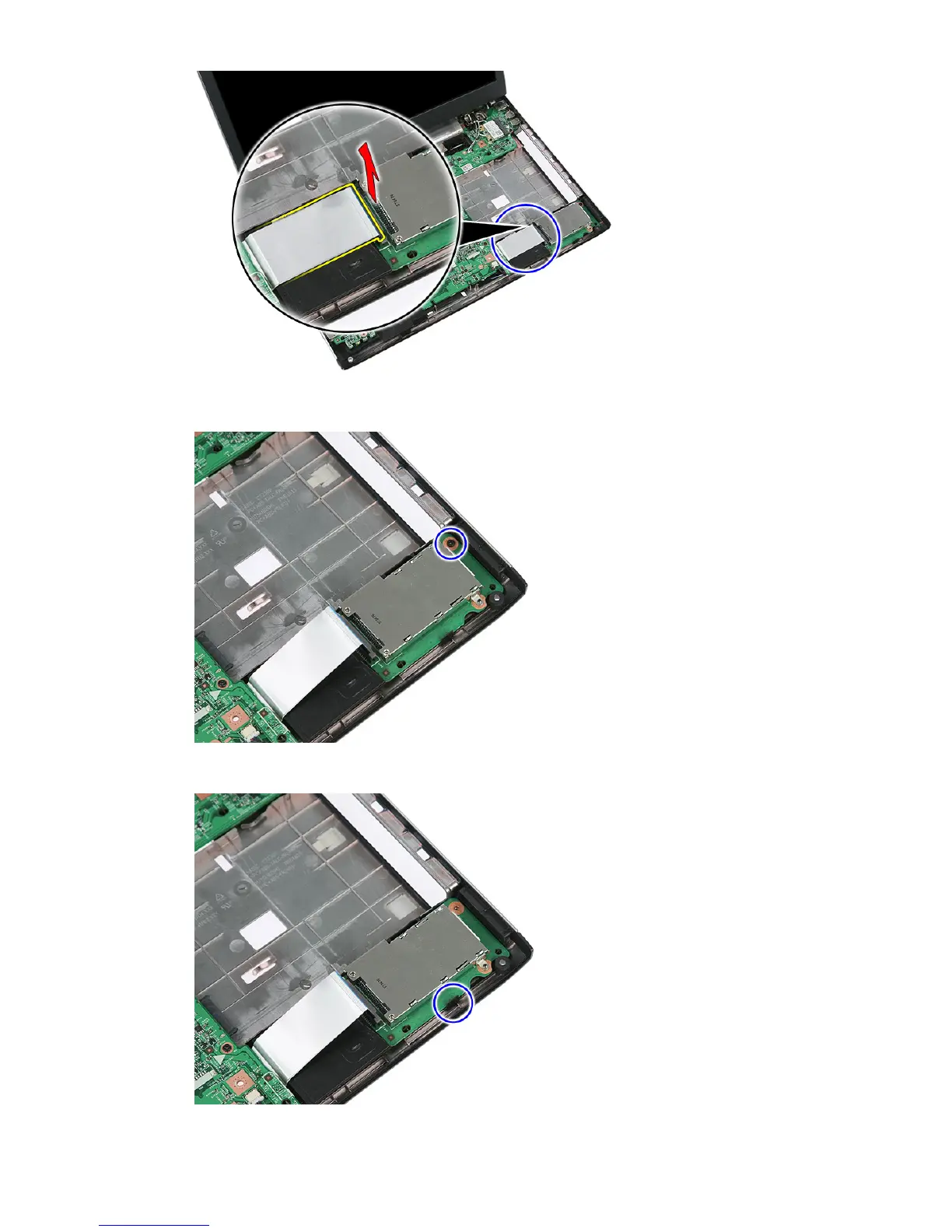

9. Remove the screw that secures the ExpressCard board.

10. Pry the latch that secures the ExpressCard board.

28
