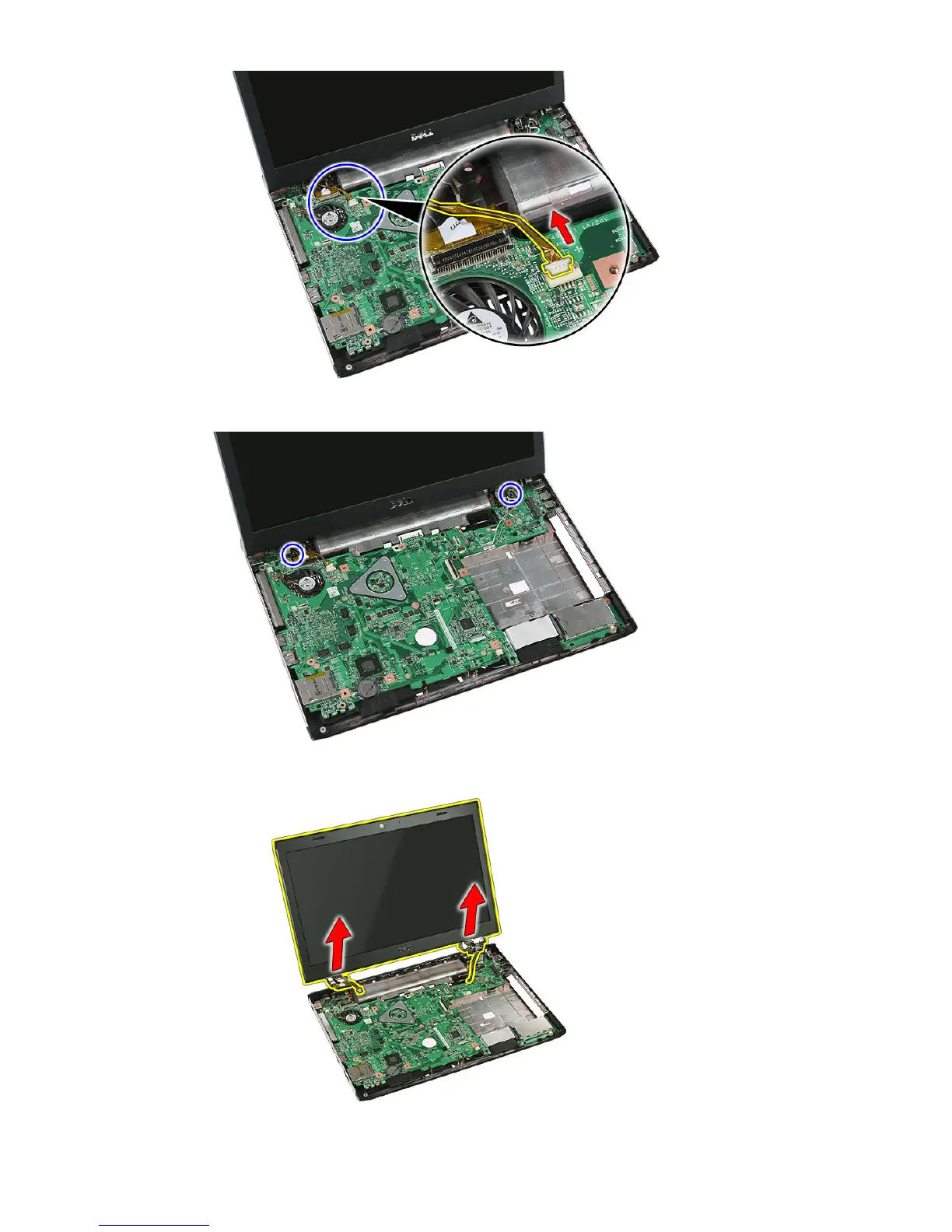

12. Remove the screws that secure the display assembly to the system.

13. Lift the display assembly up from the system and remove.

73
