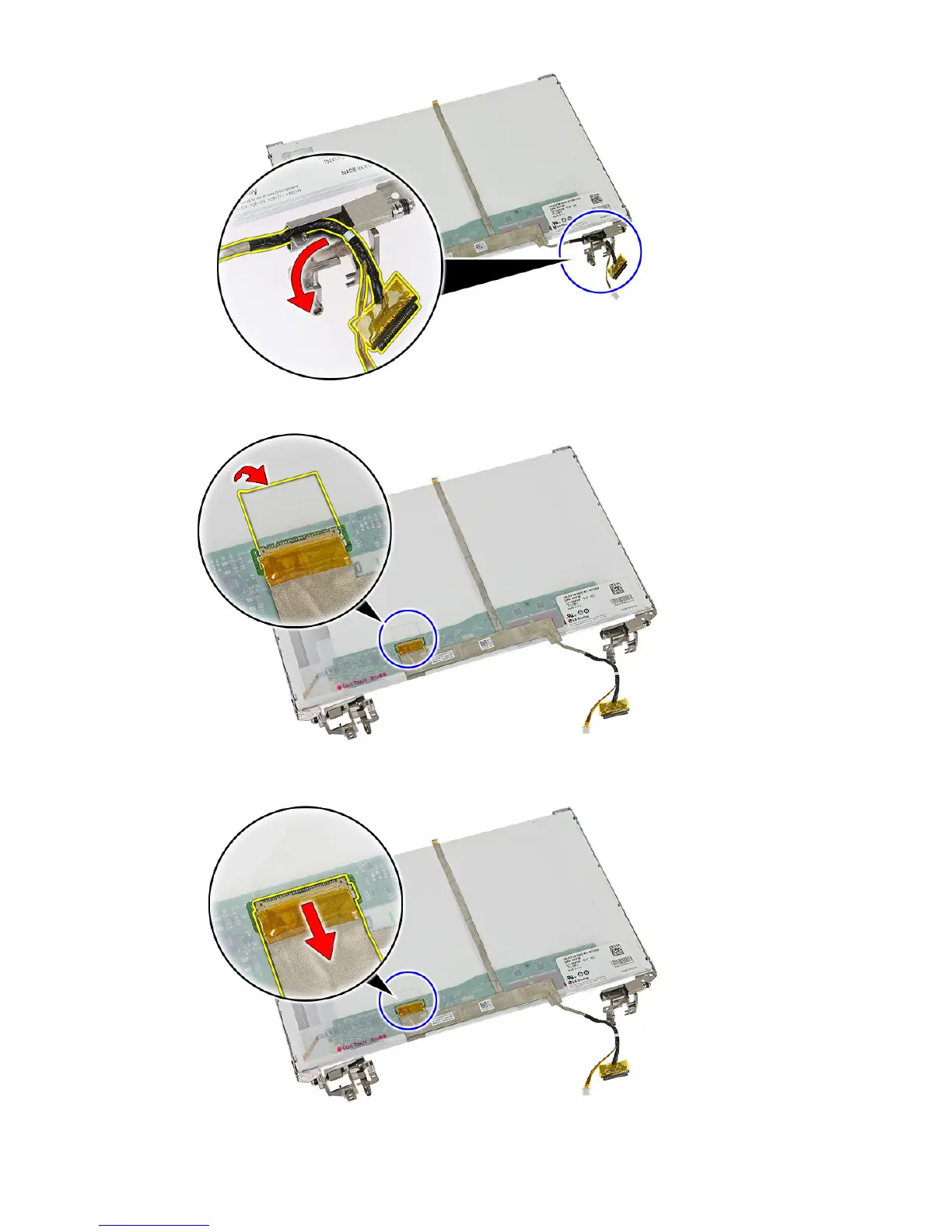

17. Peel open the tape that secures the display cable to the display panel.

18. Disconnect the display cable from the display panel.

83
