Dell Vostro 3650 - Heatsink Module Removal; Heatsink Module Installation

Installing the Coin-Cell Battery
1. Place the coin-cell battery on the system board until it snaps in place.
2. Install the:
• bezel
• cover
3. Follow the procedures in After Working Inside Your Computer.
Removing the Heatsink Module
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
• cover
• bezel
3. Open the front-bezel door.

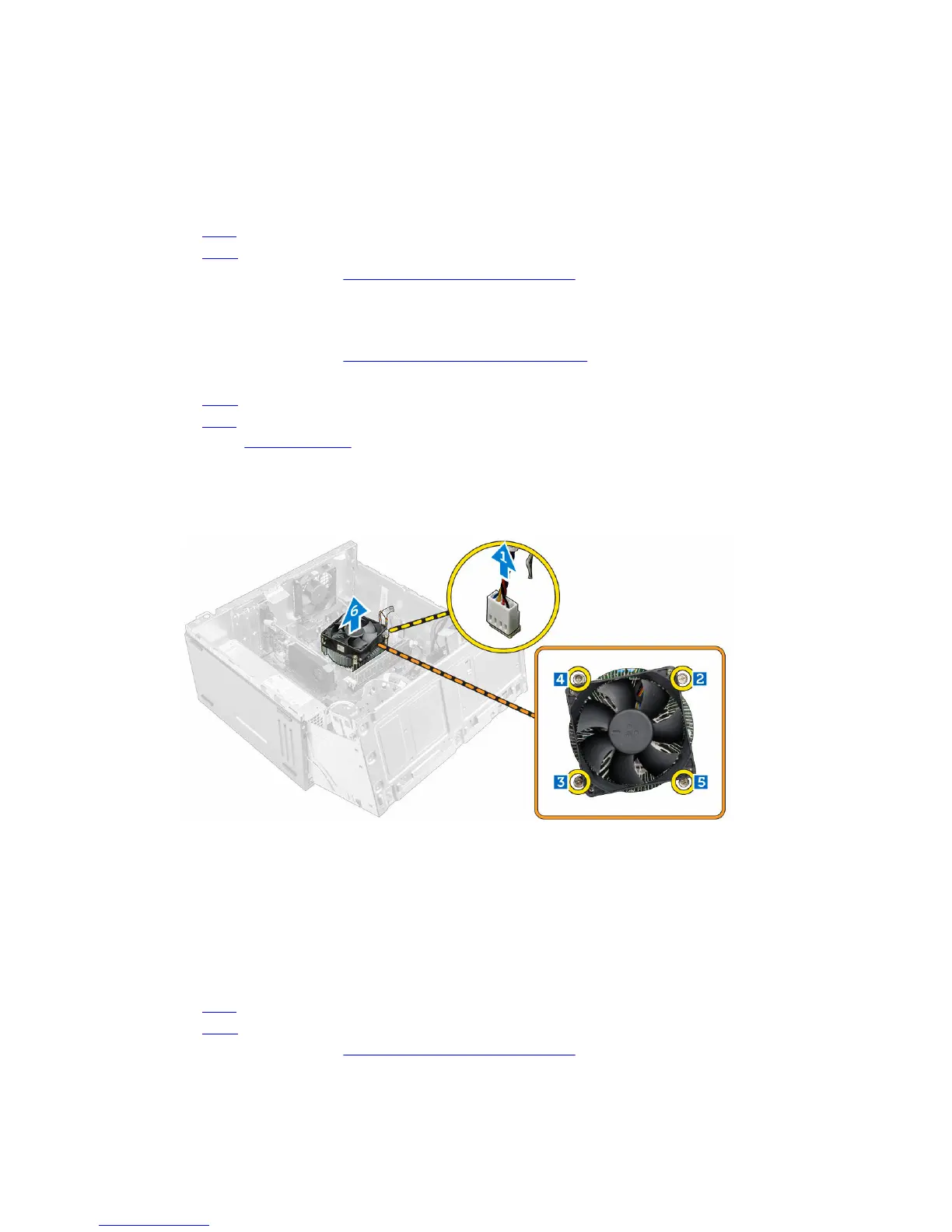

4. Perform the following steps to remove the heatsink module from the computer:
a. Disconnect the heatsink-module cable from the connector on the system board [1].
b. Remove the captive screws that secure the heatsink module to the system board [2, 3, 4, 5].
c. Lift to remove the heatsink module from the computer [6].
Installing the Heatsink Module
1. Place the heatsink module on the processor.
2. Tighten the captive screws to secure the heatsink module to the system board.
3. Connect the heatsink-module cable to the connector on the system board.
4. Close the front-bezel door.
5. Install the:
• bezel
• cover
6. Follow the procedures in After Working Inside Your Computer.
