14. Solid-state drive slots (M.2 PCIe SSD 1 + M.2 PCIe SSD 0)
15. Display cable (CVDS)
16. Coin-cell battery socket (RTC)
17. Processor socket (CPU)

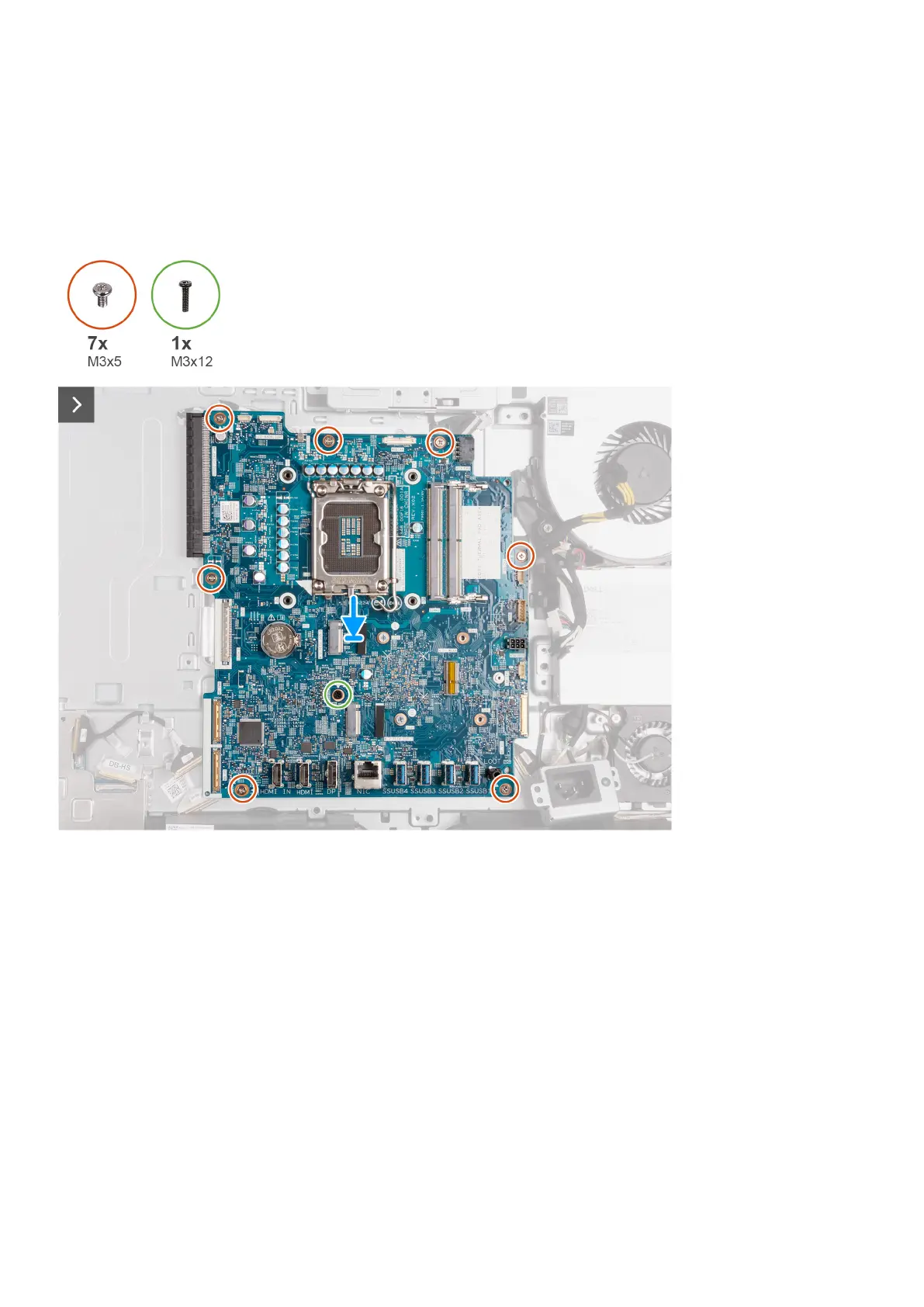

The following image(s) indicate the location of the system board and provides a visual representation of the installation
procedure.
Removal and installation procedures for High Performance processors 95
