PMAC-PCI Hardware Reference
26 PMAC-PCI E-Point Jumper Descriptions

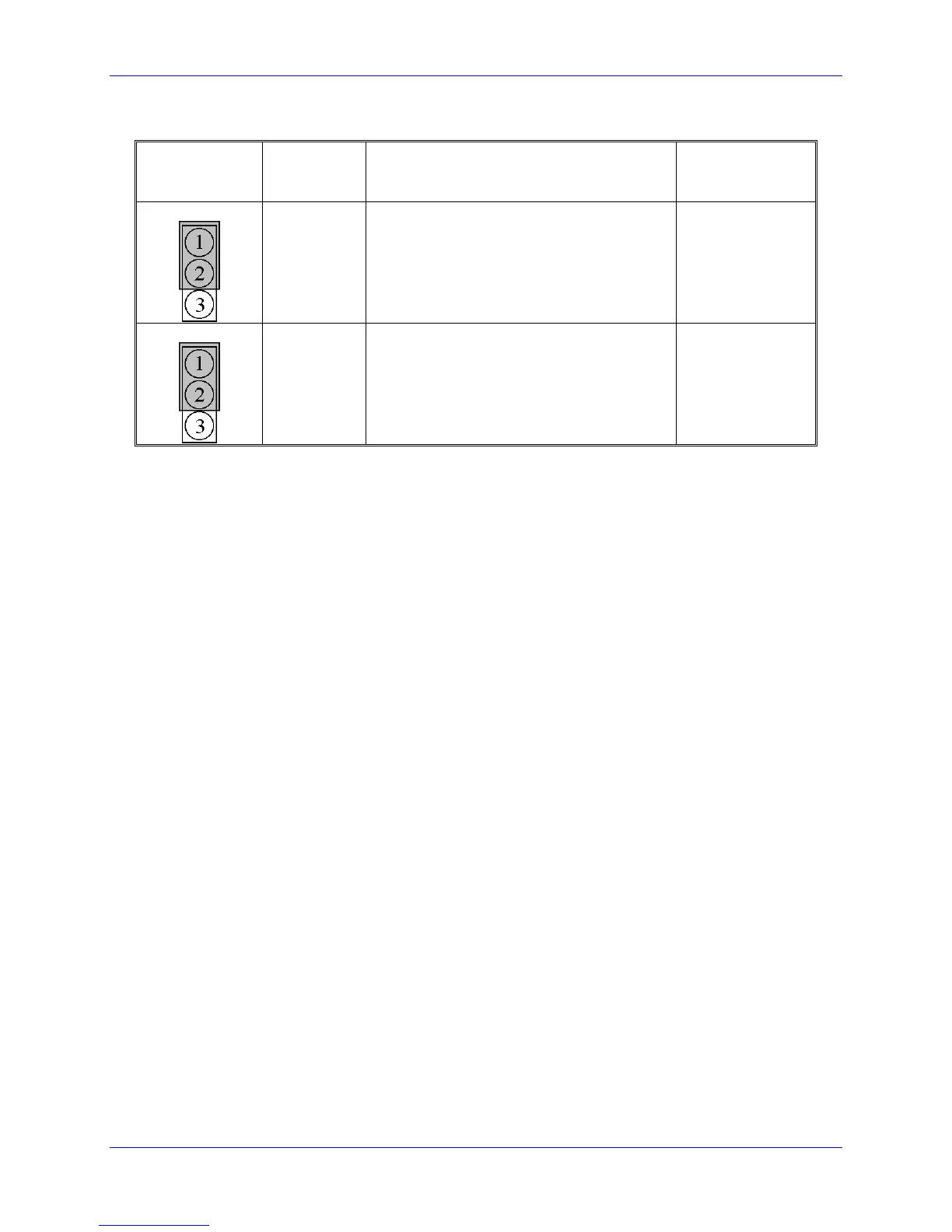

E121 - E122: XIN Feature Selection
E Point and
Physical
Layout
Location
Description
Default
E121
F1
Jump 1-2 to bring the QuadLoss signal for
Encoder 7 into register XIN6 at Y:$E801 bit 6.
Jump 2-3 to bring the QuadLoss signal for
Encoder 6 into register XIN6 at Y:$E801 bit 6.
1-2 Jumper
installed
E122
F1
Jump 1-2 to bring the PowerGood signal into
register XIN7 at Y:$E801 bit 7.
Jump 2-3 to bring the QuadLoss signal for
Encoder 8 into register XIN7 at Y:$E801 bit 7.
1-2 Jumper
installed
