PMAC-PC Hardware Reference

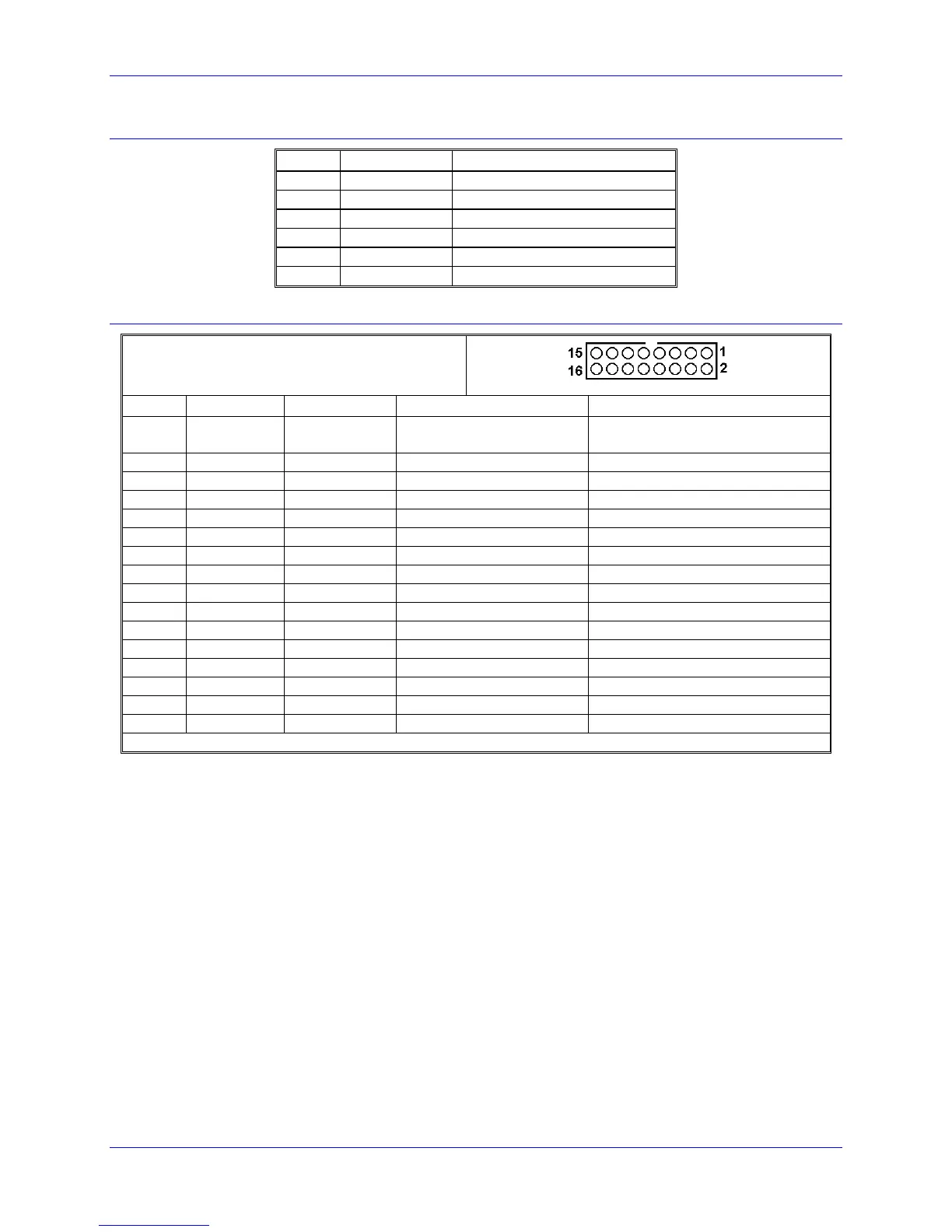

54 PMAC-PCI Base Board Connector Pinouts
J31 (JUSB) Universal Serial Bus Port (Optional)
Pin #
Symbol
Function
1
VCC
N.C.
2
D-
Data-
3
D+
Data+
4
GND
GND
5
Shell
Shield
6
Shell
Shield
JS1: A/D Port 1 Connector
JS1 (16-Pin Header)
Front View
Pin #
Symbol
Function
Description
Notes
1
DCLK
Output
D to A, A to D Clock
DAC and ADC clock for Chan. 1,
2, 3, 4
2
BDATA1
Output
D to A Data
DAC data for Chan. 1, 2, 3, 4
3
ASEL0/
Output
Channel Select Bit 0
Select for Chan. 1, 2, 3, 4
4
ASEL1/
Output
Channel Select Bit 1
Select for Chan. 1, 2, 3, 4
5
CNVRT01
Output
A to D Convert
ADC convert sig. Chan. 1, 2, 3, 4
6
ADCIN1
Input
A to D Data
ADC data for Chan. 1, 2, 3, 4
7
OUT1/
Output
Chan. Select Bit
Amp. Enable/Dir. for Chan. 1
8
OUT2/
Output
Chan. Select Bit
Amp. Enable/Dir. for Chan. 2
9
OUT3/
Output
Chan. Select Bit
Amp. Enable/Dir. for Chan. 3
10
OUT4/
Output
Chan. Select Bit
Amp. Enable/Dir. for Chan. 4
11
HF41
Input
Amplifier Fault
Amp. Fault input for Chan. 1
12
HF42
Input
Amplifier Fault
Amp. Fault input for Chan. 2
13
HF43
Input
Amplifier Fault
Amp. Fault input for Chan. 3
14
HF44
Input
Amplifier Fault
Amp. Fault input for Chan. 4
15
+5V
Output
+5V Supply
Power supply out
16
GND
Common
PMAC Common
Acc-28A/B connection; digital amplifier connection.
